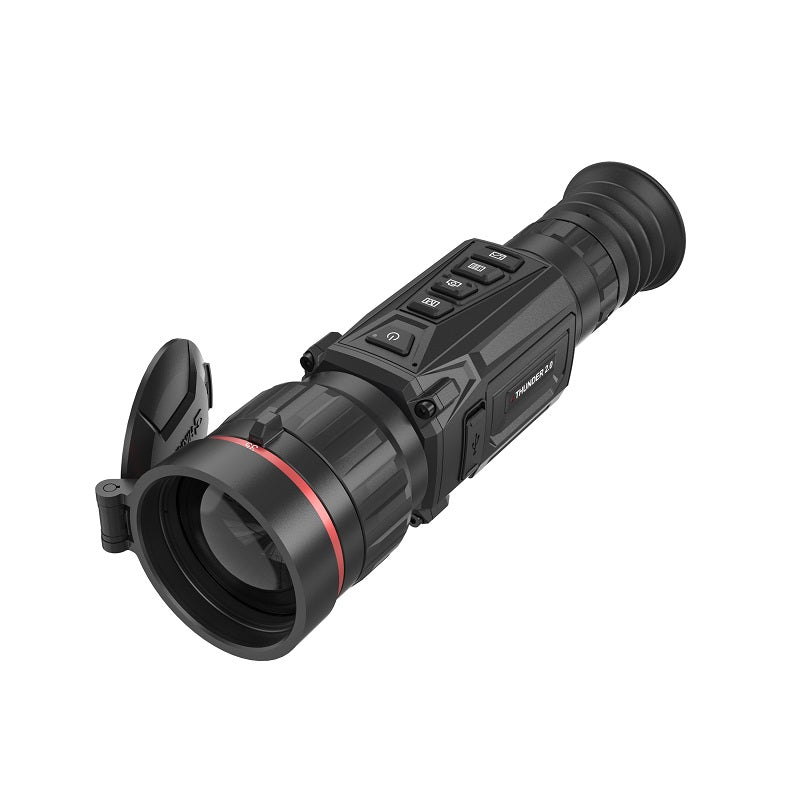

HIKMICRO Thunder Zoom TQ60Z 2.0

HIKMICRO Thunder Zoom TQ60Z 2.0 60 mm Thermal Imaging Scope. Equipped with a 640 thermal detector, a 35 mm F0.9 and a 60 mm F1.1 lens given a wide FOV at 22 m and a magnification starting at 1.8x, HIKMICRO Thunder Zoom TQ60Z 2.0 is perfect for long-range hunting up to 3,000 m. With an extended operation time, whether in forest or in field, TQ60Z 2.0 can be your helpful companion.

Technical Specifications

Thermal Module

• Image Sensor: Uncooled Focal Plane Arrays
• Resolution: 640 x 512
• Frame Rate: 50 Hz
• Pixel Interval: 12 μm
• NETD: Less than 20 mK (25°C, F# = 1.0)
• Lens (Focal Length): 35 mm, F0.9 and 60 mm, F1.1
• Focus mode: Optical Zoom, Focus Ring
• Detection Range: 1,800 m / 3,000 m
• Focusing Distance: 35 mm: 7 m/ 60 mm: 9 m
• Magnification: 1.8x to 14.6x/3.1x to 25.0x (8x)
• Field of View (H × V), Degrees/m @100 m: 12.5° × 10°/21.9 m × 17.6 m; 7.3° × 5.9°/12.8 m × 10.2 m

Image display

• Display: 1024 × 768, 0.39-inch, OLED
• Palettes: Black Hot, White Hot, Red Hot, Fusion
• FFC (Flat Field Correction) Mode: Auto, Manual, External Correction
• Exit Pupil: 6 mm
• Eye Relief: 45 mm
• Diopter (Range): -5 D to 5 D
• Brightness Adjustment: Yes
• Tone Adjustment: Cold, Warm

System

• Record Video: On-board Video Recording
• Capture Snapshot: Yes
• Standby Mode: Yes
• Storage: Built-in EMMC (16 GB)
• PIP: Yes
• DPC: Yes
• Hotspot: Yes
• Hot Track: Yes
• Distance Measurement: Yes
• Audio Recording: Yes
• Recoil-activation Recording: Yes
• Recoil: 1,000 g/0.4 ms
• Zeroing profiles: 5

Power Supply

• Battery Type: Replaceable and Rechargeable Li-ion Battery
• Battery Operating Time: ≥ 6.5 h (25°C, with hotspot off)
• Type-C Power Supply: 5 V DC, 2 A; Supports External Power Supply

General

• Protection Level: IP67
• Dimension: 254.4 mm × 68.5 mm × 80.6 mm
• Weight: 843 g without battery
• Working Temperature: -30°C to +55°C (-22°F to 131°F)
