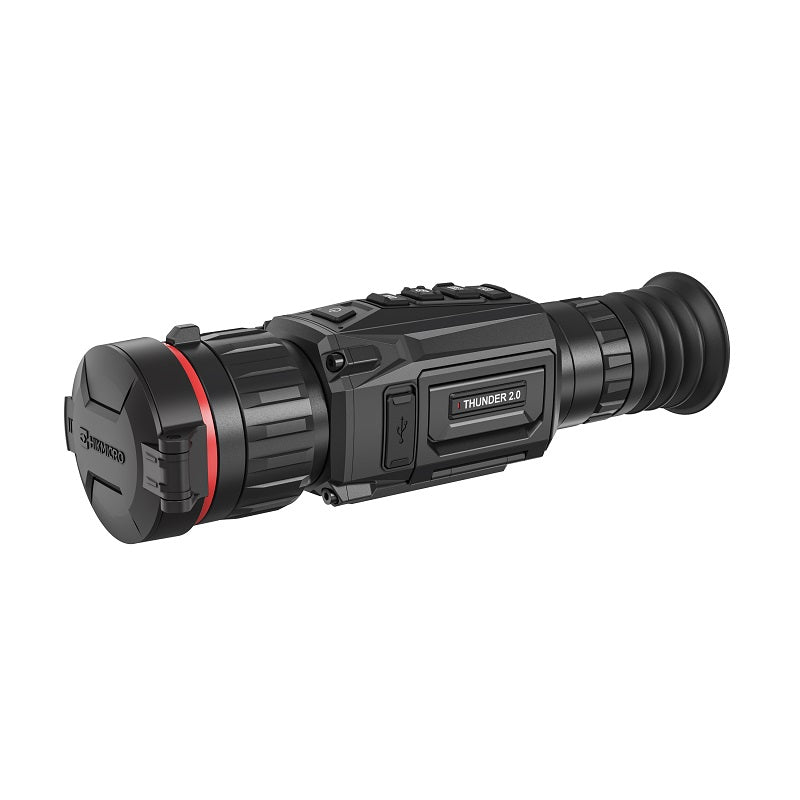

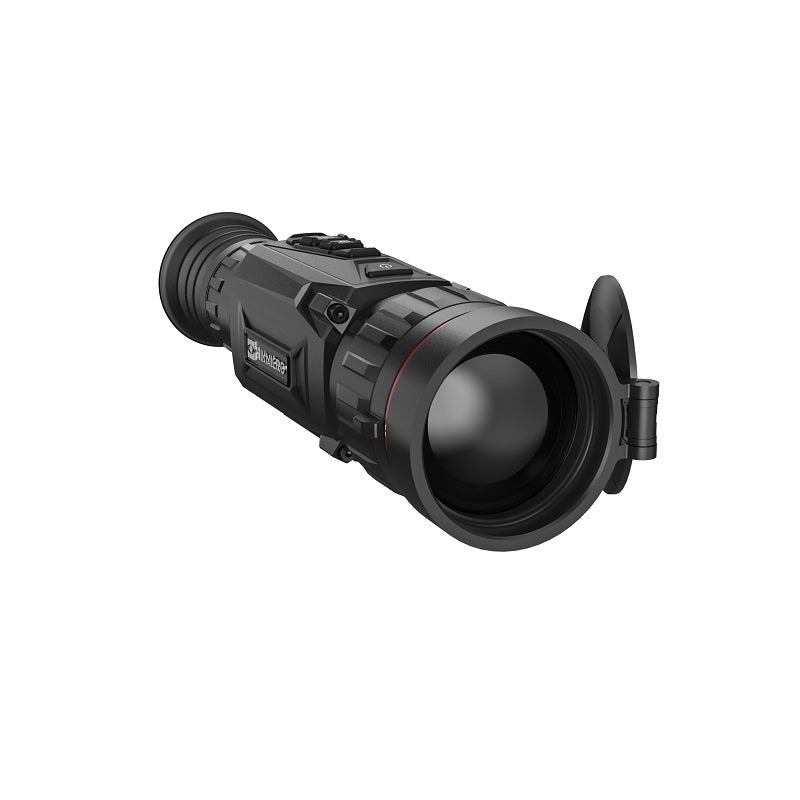

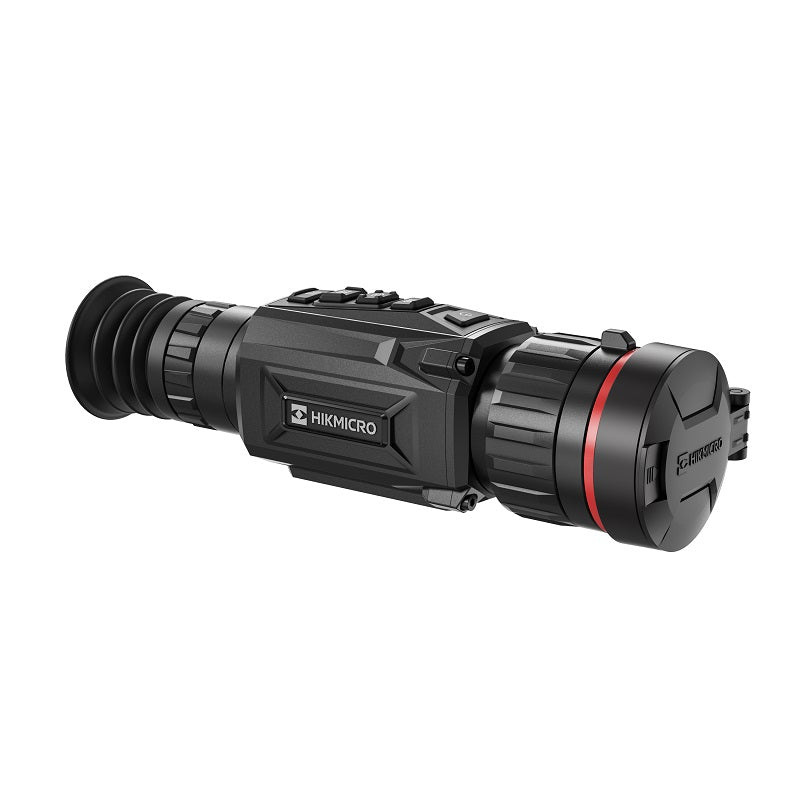

HIKMICRO Thunder Zoom TH50Z 2.0

HIKMICRO Thunder Zoom TH50Z 2.0 50 mm Thermal Imaging Scope. With a 2.2x to 34.6x large magnification realized by the 384 detector @20 mK, HIKMICRO Thunder Zoom TH50Z 2.0 is the perfect match for both wooded and open field areas. Besides, a F0.8 large aperture can strengthen your viewing ability of objects; an extended operation time can guarantee a non-stop game.

Technical Specifications

Thermal Module

• Image Sensor: Uncooled Focal Plane Arrays
• Resolution: 384 × 288
• Frame Rate: 50 Hz
• Pixel Interval: 12 μm
• NETD: Less than 20 mK (25°C, F# = 1.0)
• Lens (Focal Length): 25 mm, F0.8 AND 50 mm, F1.0
• Focus mode: Optical Zoom, Focus Ring
• Detection Range: 1,200 m / 2,600 m
• Focusing Distance: 25 mm: 4 m/50 mm: 10 m
• Magnification: 2.2x to 17.4x/4.3x to 34.6x (8x)
• Field of View (H × V), Degrees/m @100 m: 10.5° × 7.9°/18.4 m × 13.8 m; 5.3° × 4°/9.2 m × 6.9 m

Image display

• Display: 1024 × 768, 0.39-inch, OLED
• Palettes: Black Hot, White Hot, Red Hot, Fusion
• FFC (Flat Field Correction) Mode: Auto, Manual, External Correction
• Exit Pupil: 6 mm
• Eye Relief: 45 mm
• Diopter (Range): -5 D to 5 D
• Brightness Adjustment: Yes
• Tone Adjustment: Cold, Warm

System

• Record Video: On-board Video Recording
• Capture Snapshot: Yes
• Standby Mode: Yes
• Storage: Built-in EMMC (16 GB)
• PIP: Yes
• DPC: Yes
• Hotspot: Yes
• Hot Track: Yes
• Distance Measurement: Yes
• Audio Recording: Yes
• Recoil-activation Recording: Yes
• Recoil: 1,000 g/0.4 ms
• Zeroing profiles: 5

Power Supply

• Battery Type: Replaceable and Rechargeable Li-ion Battery
• Battery Operating Time: ≥ 6.5 h (25°C, with hotspot off)
• Type-C Power Supply: 5 V DC, 2 A; Supports External Power Supply

General

• Protection Level: IP67
• Dimension: 241.2 mm × 67.0 mm × 73.4 mm
• Weight: 750 g without battery
• Working Temperature: -30°C to +55°C (-22°F to 131°F)
