HIKMICRO Panther PH50L 2.0

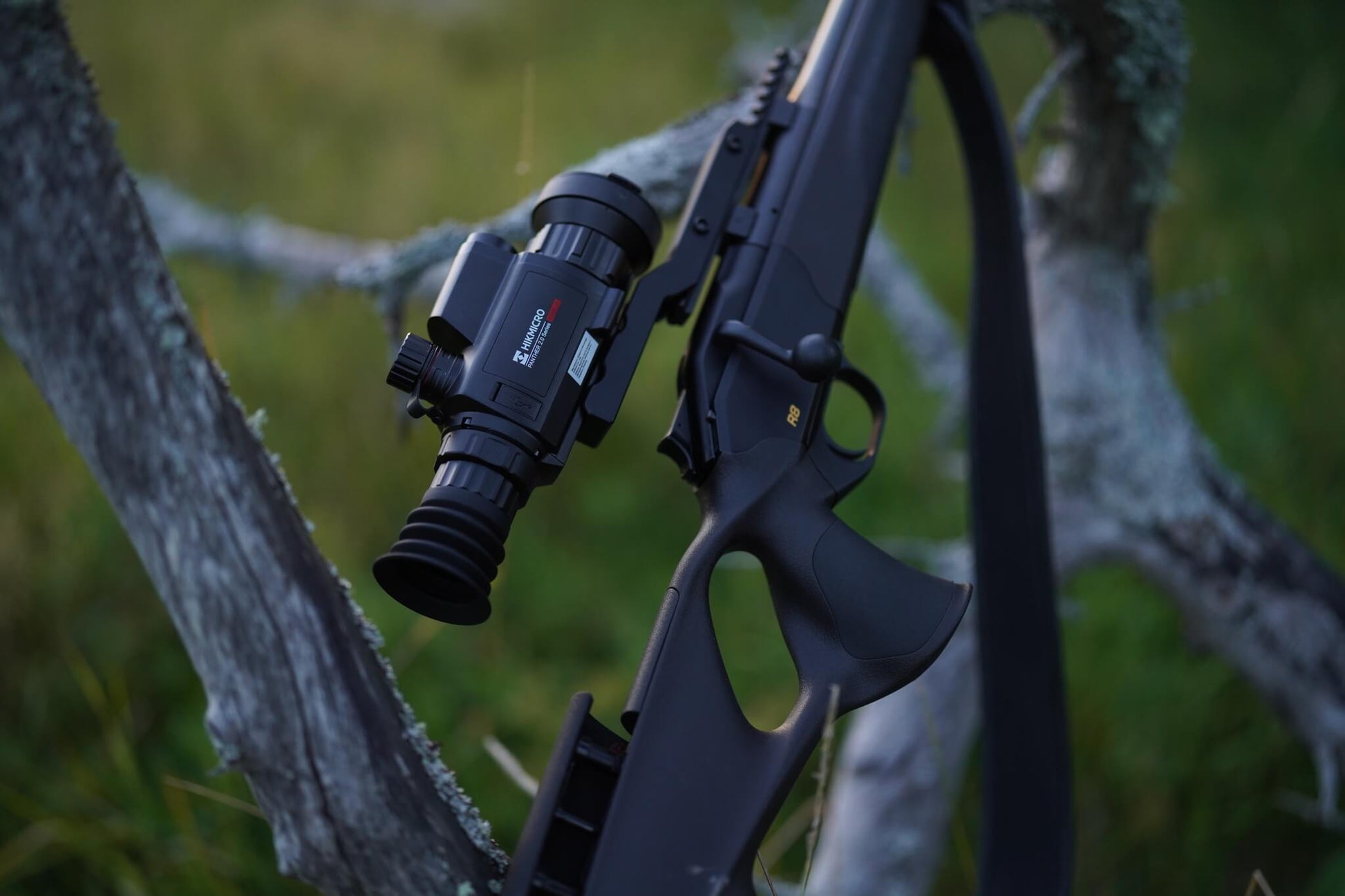

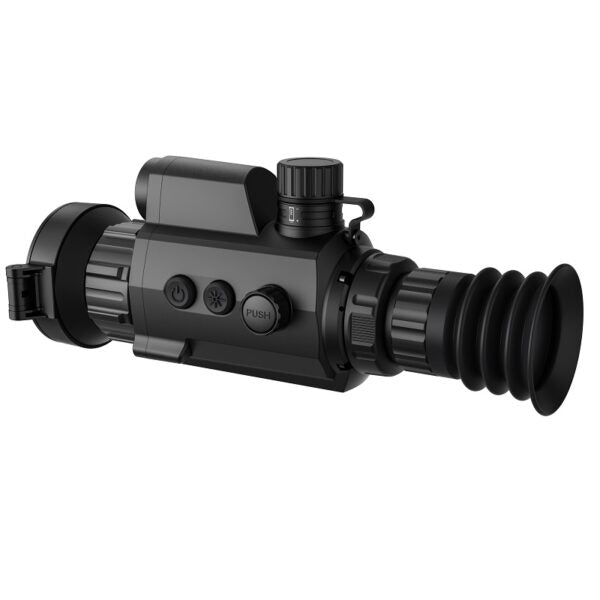

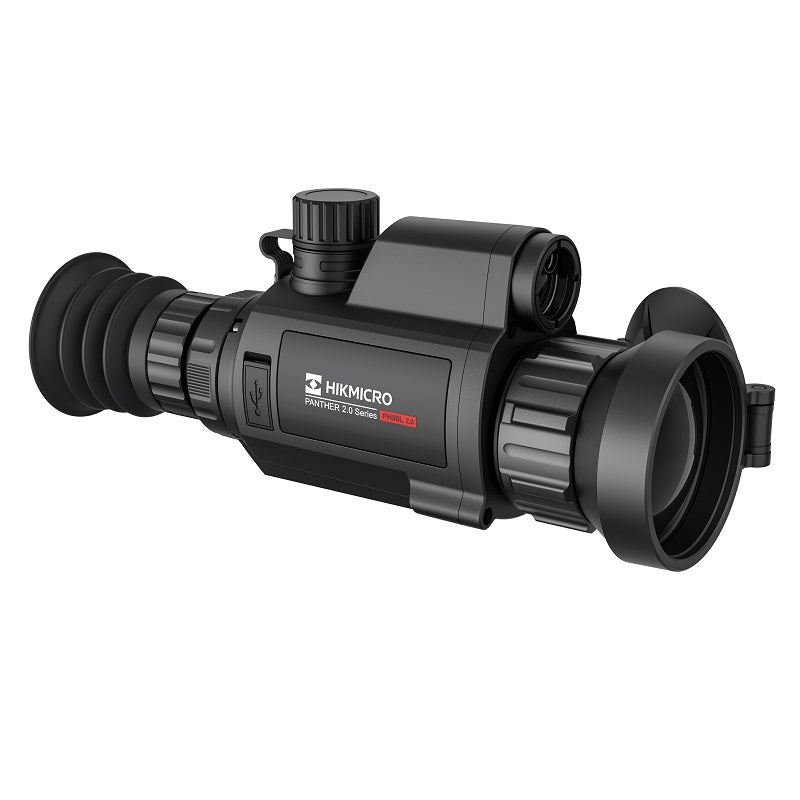

HIKMICRO Panther PH50L 2.0 Thermal Image Scope with Laser Range Finder (50 mm). The PH50L 2.0 has a 384 × 288 thermal detector and 1024 × 768 OLED monitor. High thermal sensitivity ensures perfect detail recognition even in the hardest weather conditions when the object and background are with minimal temperature difference. The scope is mainly applied to scenarios such as hiking, hunting, searching and rescuing.

Technical Specifications

Thermal Module

• Image Sensor: Uncooled Focal Plane Arrays
• Resolution: 384 × 288
• Frame Rate: 50 Hz
• Pixel Interval: 12 μm
• NETD: Less than 20 mK (25°C, F# = 1.0)
• Lens (Focal Length): 50 mm
• Detection Range: 2,600 m
• Focusing Distance: 5 m.
• Aperture: F1.0
• Magnification: 4.33 ×
• Field of View (H × V), Degrees/m @100 m: 5.28° × 3.96°/9.22 m × 6.91 m

Image Display

• Display: 1,024 × 768, 0.39-inch, OLED
• Palettes: Black Hot, White Hot, Red Hot, Fusion
• FFC (Flat Field Correction) Mode: Auto, Manual, External Correction
• Exit Pupil: 6 mm.
• Eye Relief: 45 mm
• Diopter (Range): -5 D to 3 D
• Brightness Adjustment: Yes
• Tone Adjustment: Cold, Warm

System

• Record Video: On-board Video Recording
• Capture Snapshot: Yes
• Digital Zoom: Continuous digital zooming, 1x to 8x
• Standby Mode: Yes
• Storage: Built-in EMMC (16 GB)
• PIP: Yes
• DPC: Yes
• Hotspot: Yes
• Hot Track: Yes
• Distance Measurement: Yes
• Recoil-activation Recording: Yes
• Audio Recording: Yes
• Recoil: 1,000 g/0.4 ms

Power Supply

• Battery Type: Replaceable and Rechargeable Li-ion Battery
• Battery Operating Time: ≥ 6 h (25°C, with hotspot off)
• Type-C Power Supply: 5 V DC, 2 A. Supports External Power Supply

General

• Protection Level: IP67
• Dimension: 226.81 mm × 73.34 mm × 87.10 mm
• Weight: 585 g without Battery
• Working Temperature: -30°C to +55°C

Laser Rangefinder

• Safety Class for Laser: Class 1
• Wavelength: 905 nm
• Measuring Range: 600 m
• Measurement Accuracy: ±1 m
• Measuring Range: 10 m
