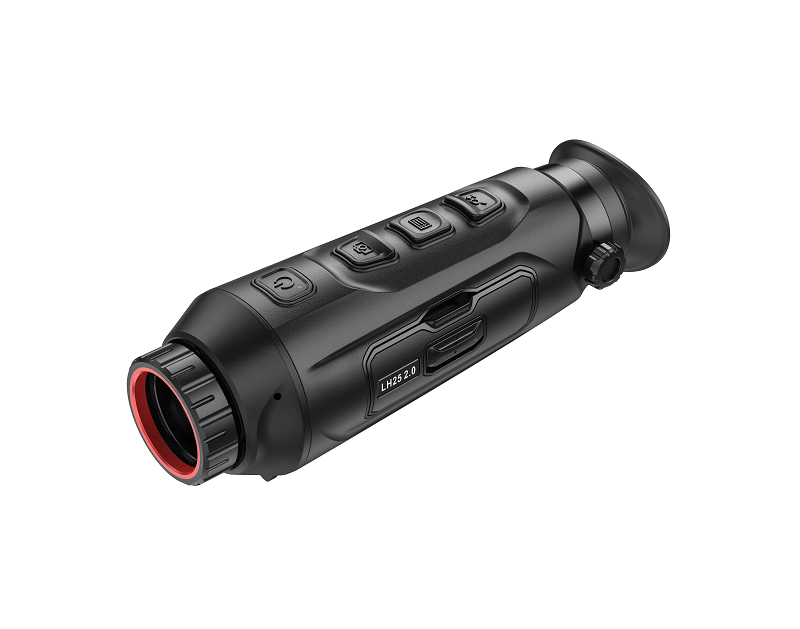

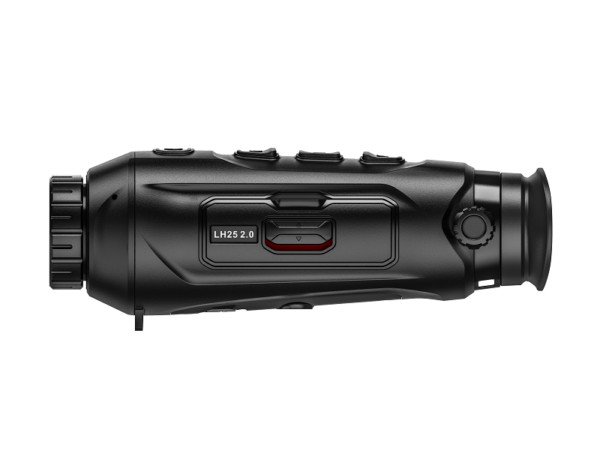

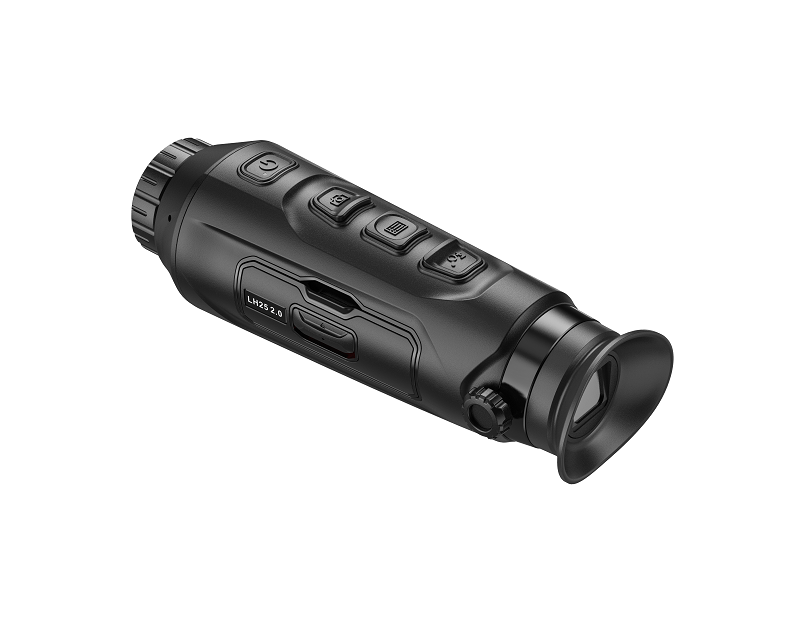

HIKMICRO Lynx LH25 2.0 Handheld Thermal Monocular

HIKMICRO Lynx LH25 2.0 Handheld Thermal Monocular. Equipped with a powerful 25-millimeter lens and an advanced 384 sensor with 12 micrometer pixel pitch, HIKMICRO LYNX LH25 2.0 captures highly detailed images at short and medium distances, especially with a high thermal sensitivity of NETD < 20 mK. With its exceptional capabilities, it effectively detects games at distances of up to 1,200 meters.

Technical Specifications

Thermal Module

• Image Sensor: VOx Uncooled Focal Plane Arrays
• Resolution: 384 × 288
• Frame Rate: 50 Hz
• Pixel Interval: 12 μm
• Response Waveband: 8 μm to 14 μm
• NETD: Less than 20 mK (@25°C), F# = 1.0
• Lens (Focal Length): 25 mm, f1.0
• Focus Mode: Focus Ring
• Detection Range: 1,200 m
• Focusing Distance: 2.5 m
• Magnification: 2.4x to 19.2x (8x)
• Field of View (H × V), Degrees / m @100 m: 10.5° × 7.9°/ 18.4 m × 13.8 m

Image Display

• Display: 1024 × 768, 0.39-inch, OLED
• Palettes: Black Hot, White Hot, Red Hot, Fusion
• FFC (Flat Field Correction) Mode: Auto, Manual, External Correction
• Exit Pupil: 6 mm
• Eye Relief: 20 mm
• Diopter (Range): -5 D to +3 D
• Brightness Adjustment: Yes
• Tone Adjustment: Cold, Warm
• Contrast Adjustment: Yes

System

• Record Video: Yes
• Capture Snapshot: Yes
• Audio Recording: Yes
• Standby Mode: Yes
• Storage: Built-in EMMC (16 GB)
• PIP: Yes
• Hotspot: Yes
• Hot Track: Yes
• Distance Measurement: Yes

Power Supply

• Battery Type: Replaceable and Rechargeable Li-ion Battery
• Battery Operating Time: 6.5-hour continuous running with CVBS and hotspot function off (@25°C)
• Type-C Power Supply: 5 VDC, 2 A; Supports External Power Supply

General

• Protection Level: IP67
• Dimension: 172.5 mm × 56.0 mm× 60.8 mm
• Weight: 277 g without battery
• Working Temperature: -30°C to +55°C
