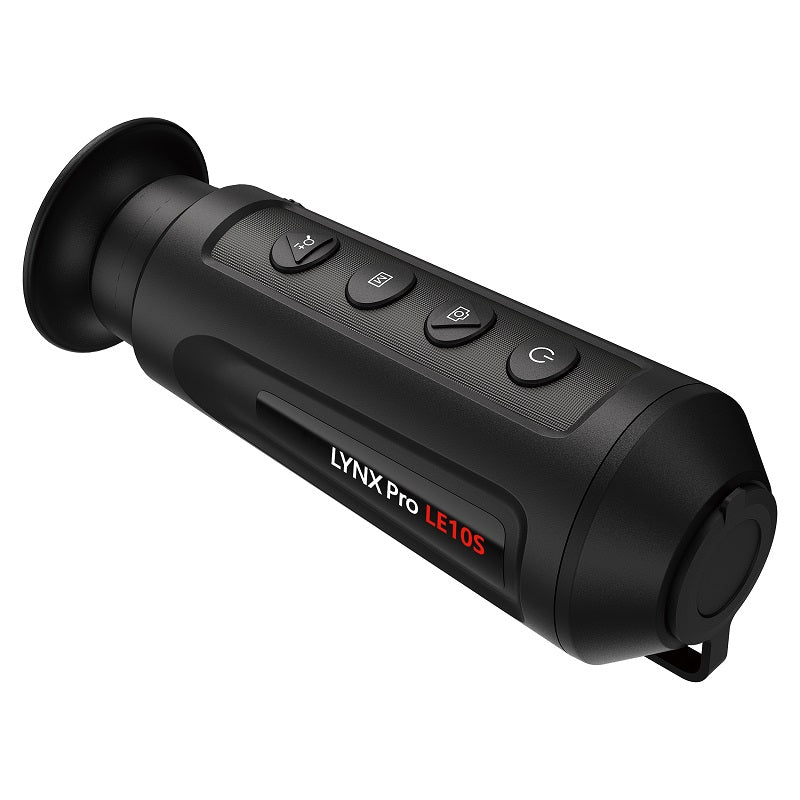

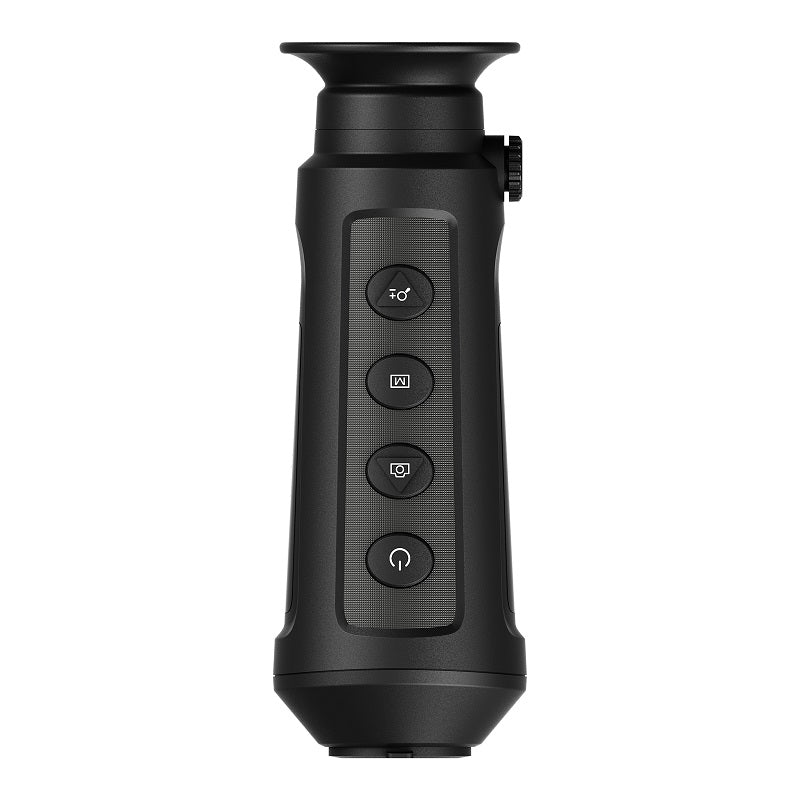

HIKMICRO Lynx LE10S Handheld Thermal Monocular

HIKMICRO Lynx LE10S Handheld Thermal Monocular. Lynx LE10S thermal monocular is equipped with a 256 × 192 infrared detector and an 800 × 600 OLED display. It supports functions of observation, distance measurement, hotspot, and so on. The high-sensitivity built-in thermal detector provides you with a clear view even in total darkness. The monocular is mainly applied to scenarios such as hunting, hiking, searching, and rescuing, etc.

Technical Specifications

Thermal Module

• Image Sensor: VOx Uncooled Focal Plane Arrays
• Resolution: 256 × 192
• Frame Rate: 50 Hz
• Pixel Interval: 12 μm
• Response Waveband: 8 μm to 14 μm
• NETD: Less than 35 mK (@25°C, F# = 1.0)
• Lens (Focal Length): 9.7 mm, F1.0
• Focus Mode: Focus Free
• Detection Range: 500 m
• Focusing Distance: 4 m
• Magnification: 1.5× to 12.0× (8×)
• Field of View (H × V), Degrees / m @100 m: 18.0° × 13.6° / 31.7 m × 23.8 m

Image Display

• Display: 800 × 600, 0.32-inch, OLED
• Palettes: Black Hot, White Hot, Red Hot, Fusion
• FFC (Flat Field Correction) Mode: Auto, Manual, External Correction
• Exit Pupil: 20 mm
• Eye Relief: 6 mm
• Diopter (Range): -5D to +4D
• Brightness Adjustment: Yes
• Tone Adjustment: Cold, Warm
• Contrast Adjustment: Yes

System

• Record Video: Yes
• Capture Snapshot: Yes
• Audio Recording: Yes
• Standby Mode: Yes
• Storage: Built-in memory module (8 GB)
• PIP: Yes
• Hotspot: Yes
• Hot Track: Yes
• Distance Measurement: Yes

Power Supply

• Battery Type: Rechargeable Lithium Battery
• Battery Operating Time: 8 hours continuous running with hotspot function off (@25°C);

6 hours continuous running with hotspot function on (@25°C)

• Type-C Power Supply: DC 5 V/2 A; Supports External Power Supply

General

• Protection Level: IP67
• Dimension: 158.3 mm × 61 mm × 57 mm
• Working Temperature: – 20°C to 55°C
• Weight: 260 g
