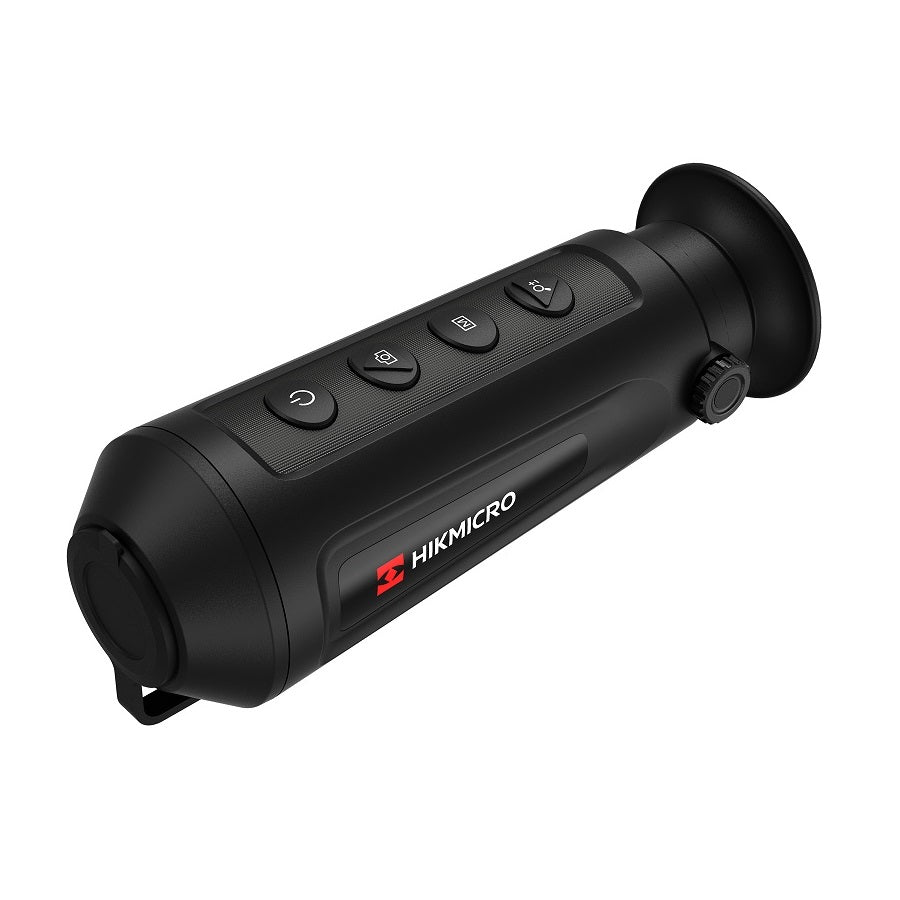

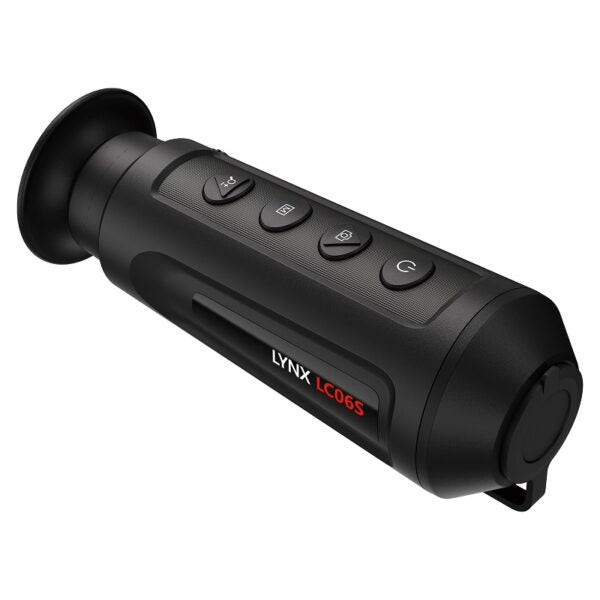

HIKMICRO Lynx LC06S Handheld Thermal Monocular

HIKMICRO Lynx LC06S Handheld Thermal Monocular. Lynx LC06S thermal monocular is equipped with a 160 × 120 infrared detector and an 800 × 600 OLED display. It supports functions of observation, distance measurement, hotspot, and so on. The high-sensitivity built-in thermal detector provides you with clear view even in total darkness. The monocular is mainly applied to scenarios such as hunting, hiking, searching, and rescuing, etc.

Technical Specifications

Thermal Module

• Image Sensor: VOx Uncooled Focal Plane Arrays
• Resolution: 160 × 120
• Frame Rate: 50 Hz
• Pixel Interval: 17 μm
• Response Waveband: 8 μm to 14 μm
• NETD: Less than 35 mK (@25°C, F# = 1.1)
• Lens (Focal Length): 6.2 mm, F1.1
• Detection Range: 250 m
• Focus Mode: Focus Free
• Focusing Distance: 1 m
• Magnification: 1.0× to 4.0× (4×)
• Field of View (H × V), Degrees / m @100 m: 24.7° × 18.7° / 43.8 m × 32.9 m

Image Display

• Display: 800 × 600, 0.32”, OLED
• Palettes: Black Hot, White Hot, Red Hot, Fusion
• FFC (Flat Field Correction) Mode: Auto, Manual, External Correction
• Exit Pupil: 20 mm
• Eye Relief: 6 mm
• Diopter (Range): -5D to +4D
• Brightness Adjustment: Yes
• Tone Adjustment: Cold, Warm
• Contrast Adjustment: Yes

System

• Record Video: Yes
• Capture Snapshot: Yes
• Audio Recording: Yes
• Standby Mode Yes
• Storage: Built-in memory module (8 GB)
• PIP: Yes
• Hotspot: Yes
• Hot Track: Yes
• Distance Measurement : Yes

Power Supply

• Battery Type: Rechargeable Lithium Battery
• Battery Operating Time : 10 hours continuous running with CVBS and hotspot off (@25°C);
  • hours continuous running with CVBS and hotspot on (@25°C)
• Type-C Power Supply: DC 5 V/2 A; Supports External Power Supply

General

• Protection Level: IP67
• Dimension: 158.4 mm × 60.4 mm × 57 mm
• Working Temperature: -20°C to 55°C
• Weight: 250 g
