1 4

Hikmicro

Thunder TQ50CL 3.0 (Laser Range Finder)

Thunder TQ50CL 3.0 (Laser Range Finder)

R 83,370.00 ZAR
R 83,370.00 ZAR
Sale Sold out
Taxes included. Shipping calculated at checkout.

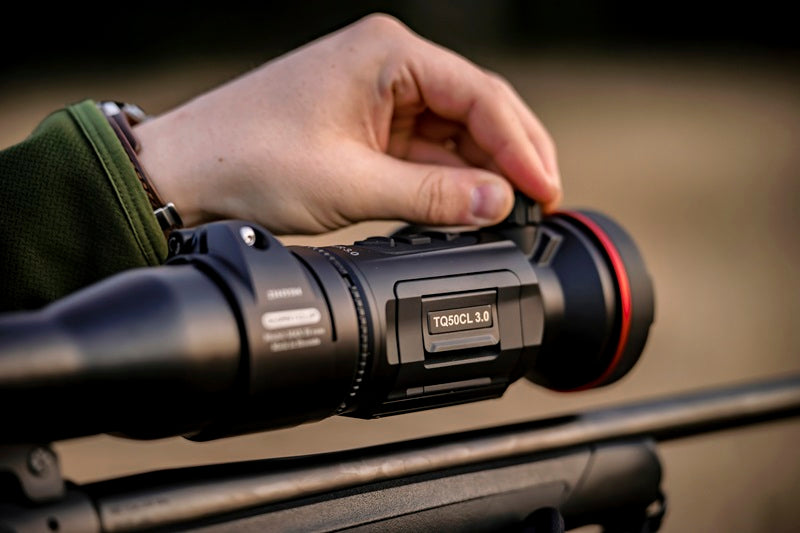

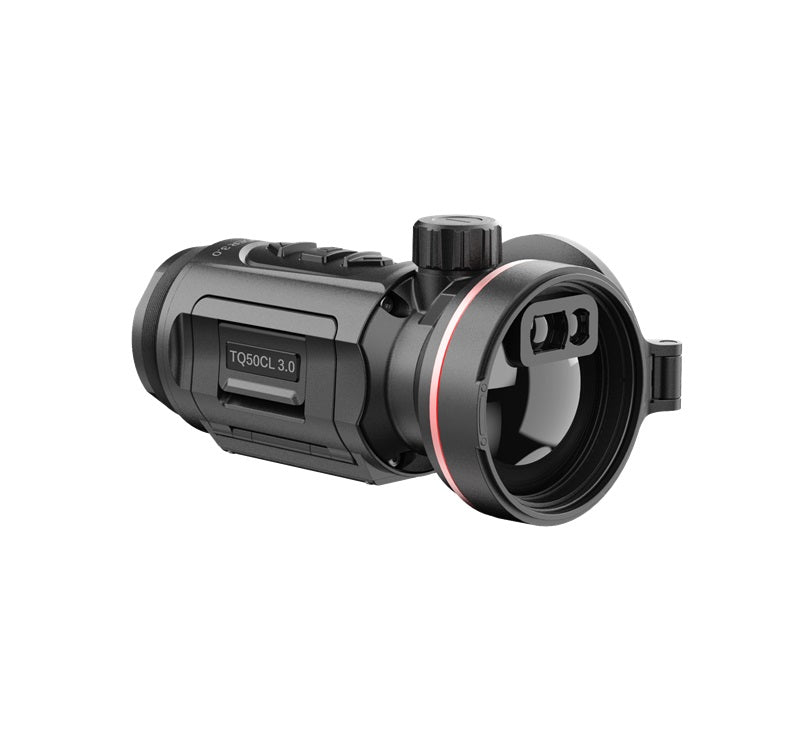

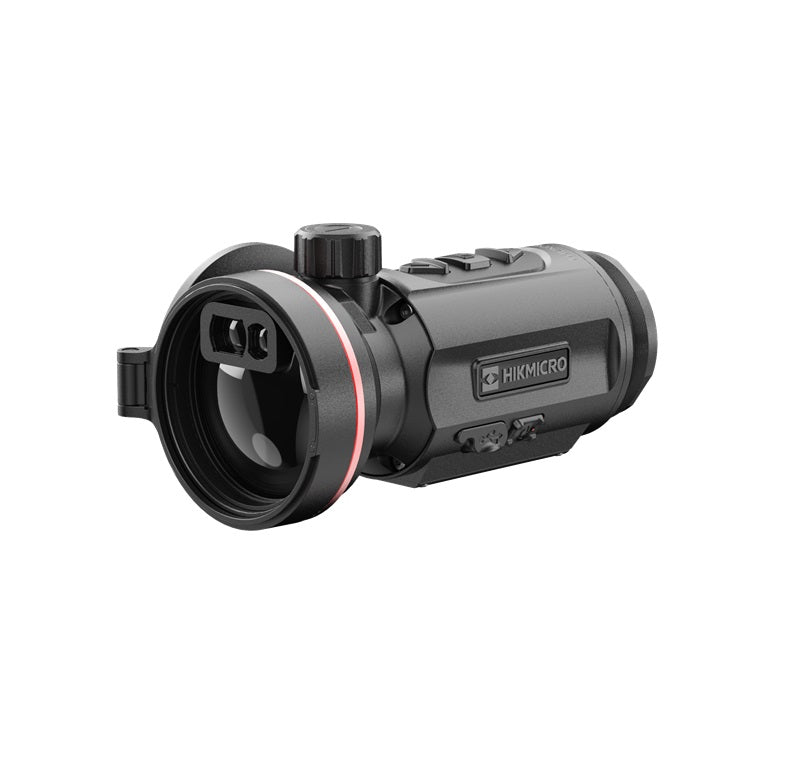

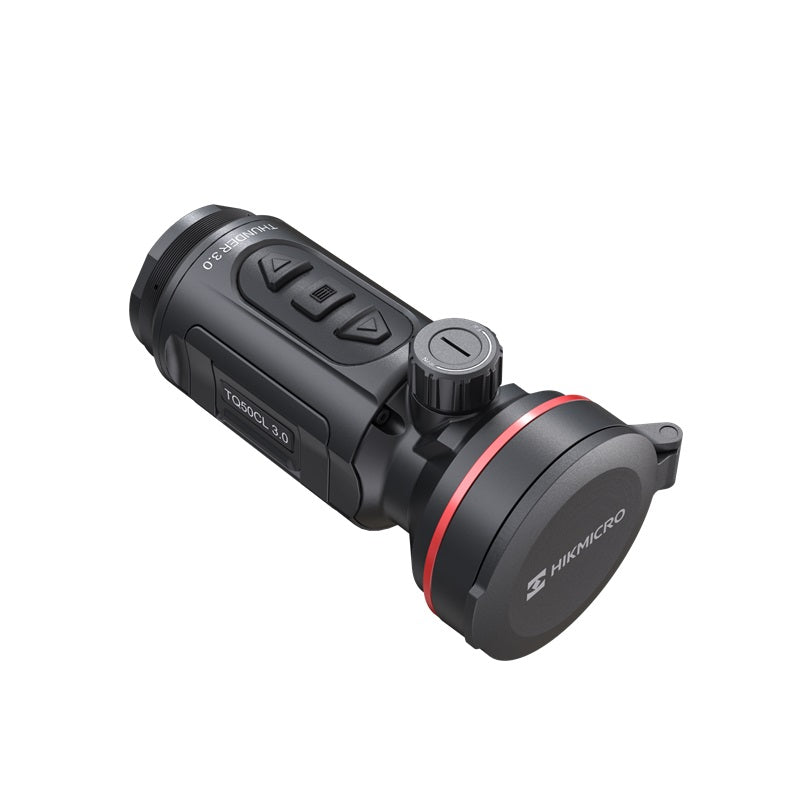

HIKMICRO Thunder TQ50CL 3.0 Thermal Monocular. The TQ50CL 3.0 is equipped with an unparalleled powerful thermal detector, with higher sensitivity and the latest image processing algorithm, ensuring users catch the finest details no matter the weather or light conditions. With a 1,920 × 1,080 OLED larger display, THUNDER 3.0 provides a better visual experience.

Technical Specifications

Thermal Module

  • Image Sensor: Uncooled Focal Plane Arrays
  • Resolution: 640 × 512
  • Frame Rate: 50 Hz
  • Pixel Interval: 12 μm
  • Response Waveband: 8 μm to 14 μm
  • Lens (Focal Length): 50 mm, F1.0
  • NETD: Less than 15 mK (@ 25 °C, F# = 1.0)
  • Detection Range: 2,600 m
  • Focus Mode: Focus Knob
  • Focusing Distance: 10 m
  • Magnification: 1×
  • Field of View(H × V), Degrees / m @ 100 m: 8.8 × 7.0 /15.4 m × 12.3 m
  • Recommended Magnification of the Day Scope: 1-15x



Image Display

  • Display: 1,920 × 1,080, 0.49 inch, OLED
  • Palettes: Black Hot, White Hot, Red Hot, Fusion, Red monochrome, Green monochrome
  • Exit Pupil: 25 mm
  • Eye Relief: 20 mm
  • Brightness Adjustment: Yes
  • Tone Adjustment: Cold, Warm
  • HSIS (HIKMICRO Shutterless Image System): Yes
  • Image Pro 2.0: Yes



System

  • Record Video: On-board Video Recording
  • Capture Snapshot: Yes
  • Virtual Reticle: Yes
  • Standby Mode: Yes
  • Storage: Built-in EMMC (64GB)
  • Hotspot: Yes
  • Hot Track: Yes
  • Reticle: No
  • Audio Recording: Yes
  • Recoil-activation Recording: Yes
  • Recoil: 1,000 g/0.4 ms
  • Local Album: Yes
  • Image Calibration: Yes
  • Zeroing Profiles: 5



Power Supply

  • Battery Type: Replacable and Rechargeable Li-ion Battery Pack
  • Battery Operating Time: ≥5h (25 °C, with hotspot off and LRF on)
  • Type-C Power Supply: 5 VDC, 2 A; Supports External Power Supply



General

  • Protection Level: IP67
  • Dimension: 150.3 mm × 83 mm × 78.1 mm
  • Weight: 540 g with Battery
  • Working Temperature: -30°C to + 55°C (-22°F to 131°F)
  • Body Material Body & Lens Cover: Magnesium Alloy



Laser Rangefinder

  • Safety Class for Laser: Class 1
  • Wavelength: 905 nm
  • Measuring Range: 1,000 m
  • Measurement Accuracy: ±1 m
  • Measuring Range: 10 m
  • LRF Module in Lens: Yes

What's in the box

  • HIKMICRO Thunder TQ50CL 3.0 Thermal Monocular
  • Battery x2
  • Battery Charger x1
  • Quick Start Guide x1
  • Non-dust Cloth x1
  • Type-C Cable x1
  • Wrench x1
  • Carry case x1

Datasheet

Click HERE to Download the datasheet.
