HIKMICRO Thunder TH35 2.0

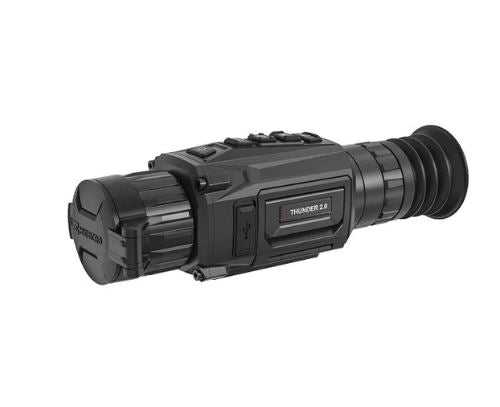

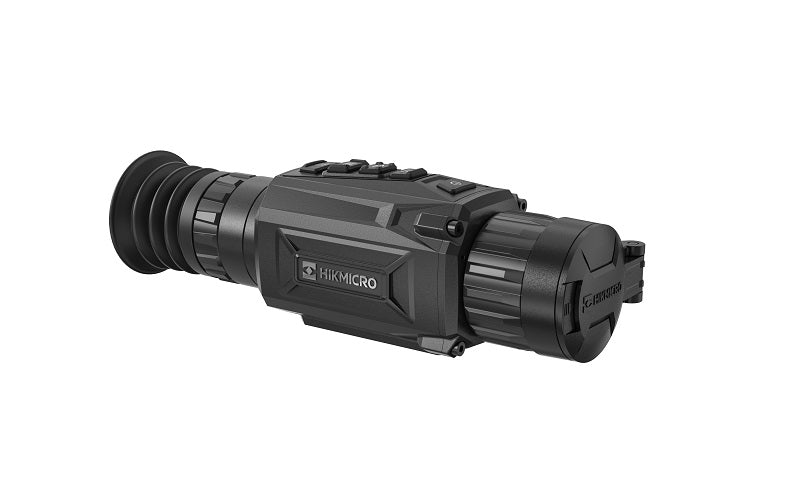

HIKMICRO Thunder TH35P 2.0 35 mm Thermal Monocular & Riflescope. The TH35P 2.0 Thermal Image Scope has a 384 × 288 thermal detector and a 1,024 × 768 OLED display. High thermal sensitivity ensures perfect detail recognition even in the hardest weather conditions when the object and background are with minimal temperature difference. With an extended operation time, the scope is mainly applied to scenarios such as hiking, hunting, searching and rescuing.

Technical Specifications

Thermal Module

• Image Sensor: Uncooled Focal Plane Arrays
• Resolution: 384 × 288
• Frame Rate: 50 Hz
• Pixel Interval: 12 mm
• NETD: Less than 20 mK (25°C, F# = 1.0)
• Lens (Focal Length): 35 mm
• Focus Knob: Yes
• Detection Range: 1,800 m
• Focusing Distance: 2 m
• Aperture: F1.0
• Magnification: 3.03 ×
• Field of View (H × V), Degrees/m @100 m: 7.53° × 5.65°/13.17 m × 9.87 m

Image Display

• Display: 1024 × 768, 0.39″, OLED
• Palettes: Black hot, white hot, red hot, fusion
• FFC (Flat Field Correction) Mode: Auto, Manual, External Correction
• Exit Pupil: 6 mm
• Eye Relief: 45 mm
• Diopter (Range): -5 D to 5 D
• Brightness Adjustment: Yes
• Tone Adjustment: Cold, Warm

System

• Record Video: On-Board Video Recording
• Capture Snapshot: Yes
• Digital Zoom: 1x, 2x, 4x, 8x
• Standby Mode: Yes
• Storage: Built-In EMMC (16 Gb)
• PIP: Yes
• DPC: Yes
• Hotspot: Yes
• Hot Track: Yes
• Distance Measurement: Yes
• Recoil-Activation Recording: Yes
• Audio Recording: Yes
• Recoil: 1,000 g/0.4 ms

Power Supply

• Battery Type: Replaceable and Rechargeable Li-Ion Battery
• Battery Operating Time: ≥ 6.5 h (25°C, with hotspot off)
• Type-C Power Supply: 5 VDC, 2 A; Supports external power supply

General

• Protection Level: IP67
• Dimension: 221.14 mm × 67.4 mm × 68.04 mm
• Weight: 515 g without battery
• Working Temperature: -30°C to +55°C
