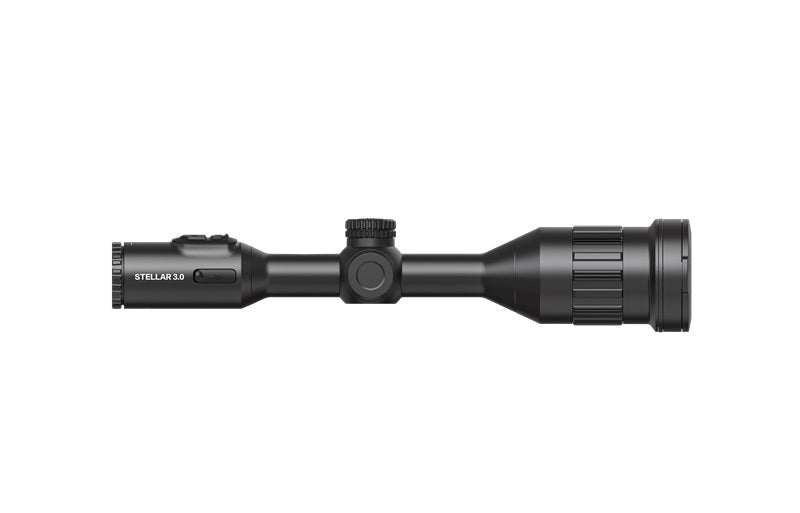

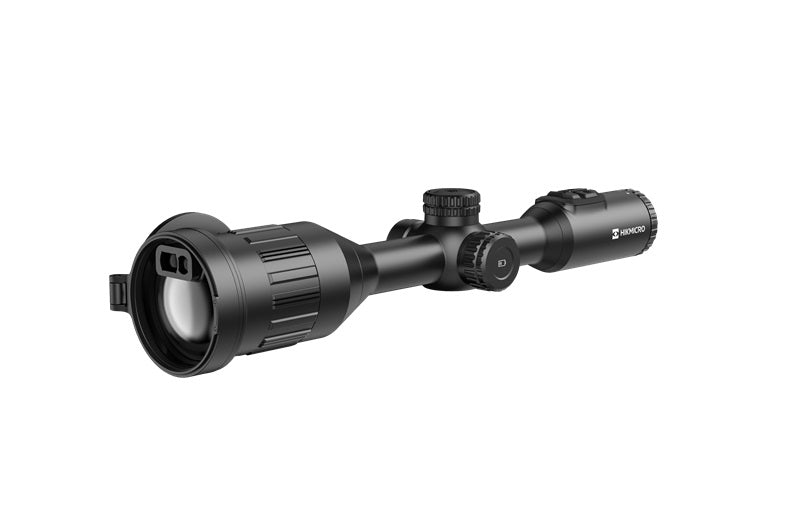

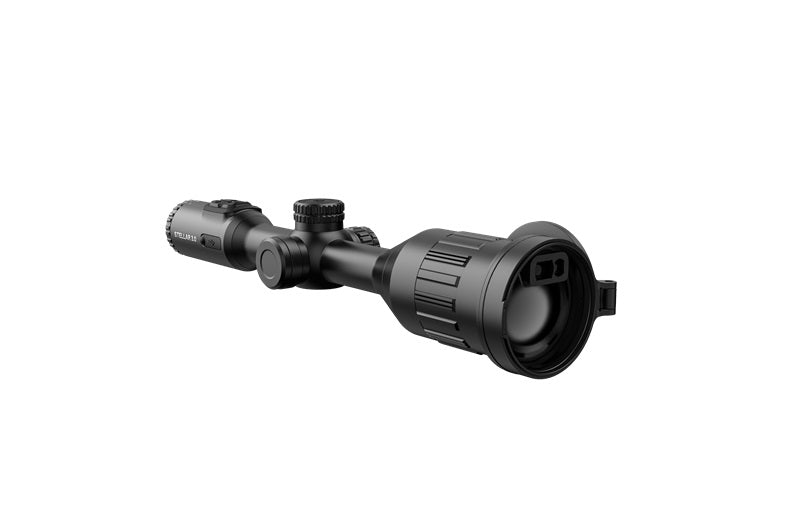

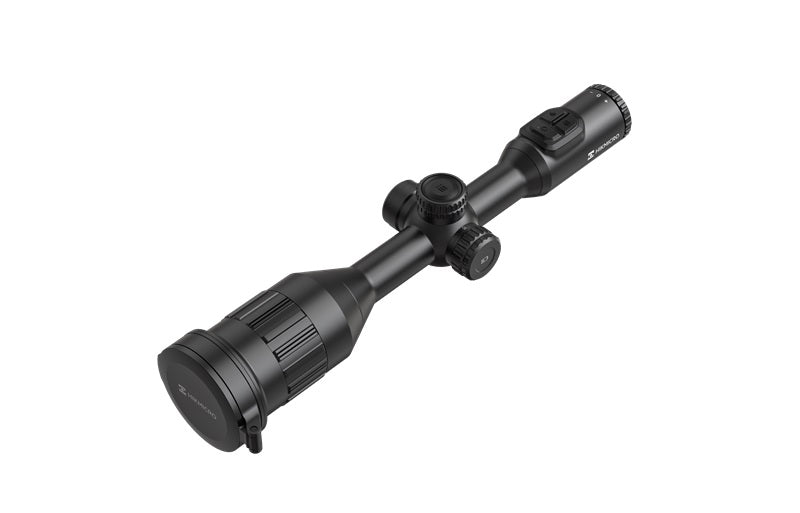

Stellar SX60L 3.0 (Laser Range Finder)

HIKMICRO Stellar SX60L 3.0 Thermal Image Scope. The SX60L 3.0 is equipped with a 1,280×1,024 @ 12 μm thermal detector, with much higher sensitivity (NETD＜18mK) and the latest image processing algorithm (Image Pro 2.0), ensuring users catch the finest details no matter the weather or light conditions without interruption. With a 2,560×2,560 1.03” AMOLED larger display, SX60L 3.0 makes it easier to spot targets quickly and accurately. The built-in lens 1,000 m LRF and ballistic calculation contribute to more accurate shooting. The scope is mainly used for field and forest hunting.

Technical Specifications

Thermal Module

• Image Sensor: VOx Uncooled Focal Plane Arrays
• Resolution: 1,280 × 1,024
• Frame Rate: 25 Hz
• Pixel Interval: 12 μm
• Response Waveband: 8 μm to 14 μm
• NETD: Less than 18 mK (@ 25°C, F# = 1.0)
• Lens (Focal Length): 60 mm, F1.0
• Focus Mode: Focus Ring
• Detection Range: 3,100 m
• Focusing Distance: 6 meters
• Magnification: 2.5×-28.5×; Support 1× step value of continuous zooming
• Field of View (H×V), Degrees / m @100 m: 14.6° × 11.7°/25.6 m × 20.5 m

Image Display

• Display: 2,560 × 2,560, 1.03-inch OLED
• Palettes: Black Hot, White Hot, Red Hot, Fusion, Red Monochrome, Green Monochrome
• Exit Pupil: 6 mm
• Eye Relief: 45 mm
• Diopter (Range): -5D to 3D
• Brightness Adjustment: Yes
• Tone Adjustment: Cold, Warm
• Contrast Adjustment: Yes
• Zoom Pro: Yes
• Image Pro 2.0: Yes
• HSIS (HIKMICRO Shutterless Image System): Yes

System

• Record Video: On-board Video Recording
• Capture Snapshot: Yes
• Audio Recording: Yes
• Recoil-activation Recording: Yes
• Standby Mode : Yes
• Storage: Built-in EMMC (64 GB)
• PIP: Yes
• Hotspot: Yes
• Hot Track: Yes
• Distance Measurement: Yes
• Zeroing Profiles: 5
• Recoil: 1,000 g/0.4 ms
• Freeze Zeroing: Yes
• Local Album: Yes

Power Supply

• Battery Type: Two rechargeable Lithium batteries (internal), one replaceable and rechargeable 18650 battery (external)
• Battery Operating Time: 10 hours continuous running (@ -20°C, Zoom Pro, LRF on)
• Type-C Power Supply : 5 V DC/2 A, USB Type-C interface; Supports QC3.0

General

• Mounting: Standard 30 mm
• Protection Level: IP67
• Dimension: 452.6 mm x 94.3 mm x78.9 mm
• Weight: 860 g without external battery
• Working Temperature: -30°C to 55°C (-22°F to 131°F)
• Centre Height: 41 mm

Laser Rangefinder

• Safety Class for Laser: Class 1
• Wavelength: 905 nm
• Measuring Range: 1,000 m
• Measurement Accuracy: ±1 m
• Measuring Range: 10 m
