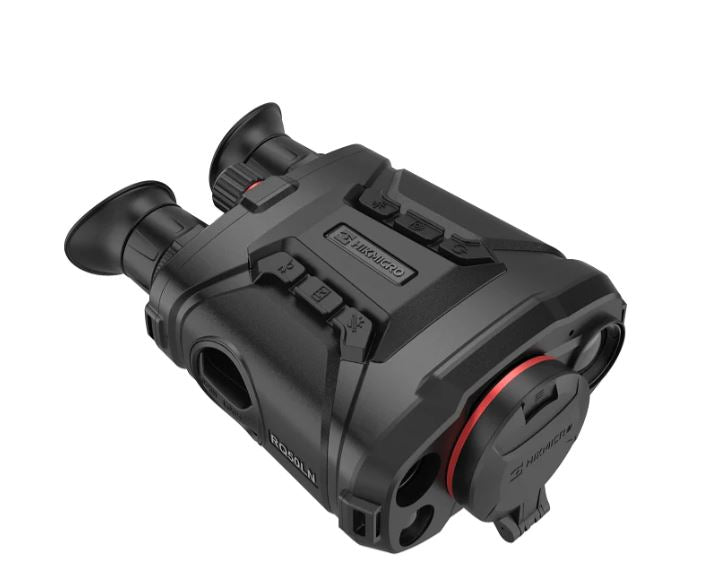

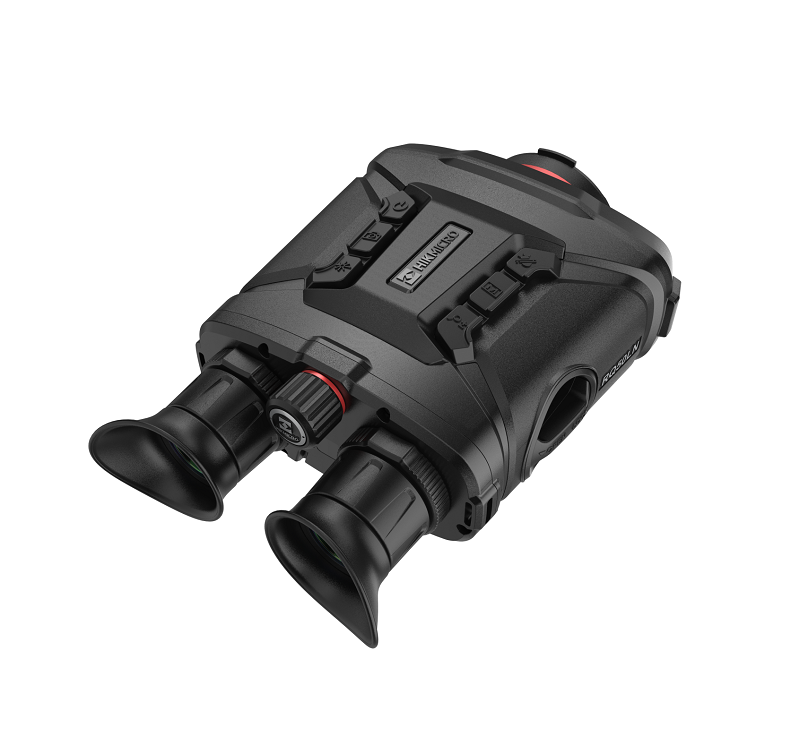

HIKMICRO Raptor RH50L 50mm Handheld Thermal Fusion Optical IR LRF Binoculars

HikMicro Raptor RH50L 50mm Handheld Thermal Fusion Optical IR LRF Binoculars. The Raptor RH50L binoculars combine industry leading thermal performance with a high performance day and night vision camera to deliver the ultimate detection capability in an ergonomic and easy to use package. Detection range (Man size object) is a whopping 2,600 m. It also offers a precise built-in laser rangefinder up to 1,000 m measuring distance and built-in 850 nm IR illuminator.

Technical Specifications

Thermal Module

• Image Sensor: Vox Uncooled Focal Plane Arrays
• Resolution: 384 x 288
• Pixel Interval: 12 mm
• NETD: < 20 Mk (@25°C, F# = 1.0)
• Lens (Focal Length): 50 mm
• Aperture: F0.9
• Digital Zoom: 1 ×, 2 ×, 4 ×, 8 ×, 16 ×
• Magnification: 3.4 ×
• Detection Range 2,600 m
• Focusing Distance: 5 m
• Focus Mode: Manual
• Frame Rate: 25 Hz
• Field Of View(H × V), Degrees/m @100 m: 8.8° × 7.0° (H × V)/ 15.4 m × 12.2 m

Optical Module

• Image Sensor: 1.88” Progressive Scan CMOS
• Resolution: 2,560 × 1,440
• Focal Length: 31 mm
• Aperture: F1.2
• Image Enhancement: Yes
• Illumination: 0.001 Lux @ (F1.0, AGC On)
• Smart IR: Yes
• IR Illuminator – Wavelength: 850 nm
• Viewing Range at Night: 400 m

Image Display

• Display: 0.39”, OLED, 1,024 × 768
• Diopter (Range): -5 D To +3 D
• Optical Mode: Day, Night, Auto, Defog
• FFC (Flat Field Correction) Mode: Auto, Manual, External Correction
• Image Mode: Optical, Fusion, White Hot, Black Hot, Red Hot, Image Fusion
• Image Pro: Yes

System

• Built-In Memory: 64 Gb
• Multiple Language: Yes
• Audio Recording: Yes
• Record Video: Mp4, 1,600 × 1,200
• Capture Snapshot: Jpeg, 1,600 × 1,200
• Local Album: Yes
• Standby Mode: Yes
• Proximity Sensor: Yes
• Hotspot: Yes
• Hot Track: Yes
• GPS: Yes
• Digital Magnetic Compass: Yes
• Supported Application: HikMicro Sight
• Pip: Yes

Power Supply

• Battery Type: Replaceable and Rechargeable Li-Ion Battery
• Battery Operating Time: 8 Hours
• Type-C Power Supply: Yes

General

• Protection Level: IP67
• Working Temperature: -30°C To 55°C
• Working Humidity: < 90%
• Storage Temperature: -40°C To 70°C
• Interpupillary Adjustment Range: 60 mm to 70 mm
• Eye-Relief: 15 mm
• Dimension: 217.5 mm × 155.0 mm × 87.5 mm
• Weight: 1,120 g

Laser Rangefinder

• Measuring Range: 1,000 m
• Safety Class for Laser: Class 1
• Wavelength: 905 nm
• Measurement Accuracy ± 1 m
