Pulsar Merger Duo NXP50 Multispectral Binocular

Pulsar Merger Duo NXP50 Multispectral Binocular

R 109,999.00 ZAR
R 0.00 ZAR R 109,999.00 ZAR
Sale Sold out
Taxes included. Shipping calculated at checkout.

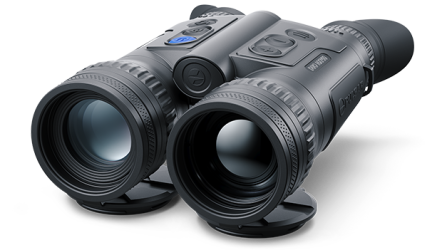

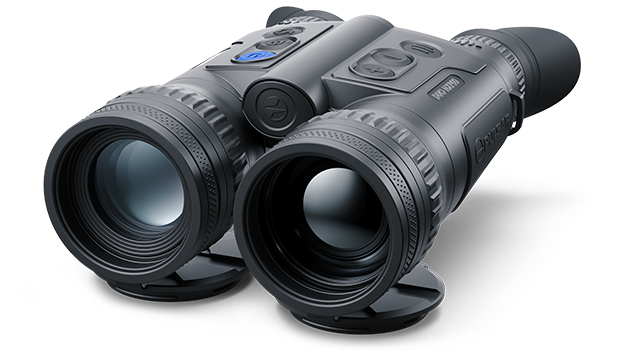

Merger Duo NXP50 are innovative multispectral binoculars combining thermal and digital night vision imaging in a single unit and offering enhanced detection, recognition and identification capabilities. Merger Duo NXP50 acquires quality images in various wavelength spectrums (visible, near infrared and long-wave Infrared ranges) making it a truly versatile unit for observation at any time of the day under all weather conditions. Taking advantages of both technologies, Merger Duo makes it easy to find an object with thermal imaging, evaluate the terrain with digital night vision and identify clearly all the object’s smallest features and details with combined viewing modes.

Thermal, digital and combined viewing modes

The Merger Duo supports several observation modes. The thermal image mode is used for animal detection and observation in any weather conditions, while digital image mode maintains improved target-identification capability in Full-HD resolution. The “Picture-in-Picture” function makes it possible to simultaneously display images from both optical channels, prioritising the thermal or digital image.

Advanced Pulsar Image boost technology


Pulsar Image Boost gives Merger Duo thermal imaging the highest level of detail, clarity and contrast with a set of original image processing algorithms. Merger Duo multispectral binoculars render complex scenes in a wide range of halftones with evenly emitting low-contrast objects, such as the sky, grass and water surfaces. Software detailing and sharpening of objects at different distances makes the thermal image highly informative. Manually increasing the thermal imaging sensor sensitivity improves the quality of animal detection when observation conditions worsen. A smoothing filter and a wide range of brightness and contrast settings make prolonged observation time comfortable.

1800m thermal detection range

The advantage of thermal imaging is early animal detection at any time of day. At night, it is the most effective way to find game at a great distance. Due to high-quality long-focal-length optics and a high-sensitivity sensor, the Merger Duo has outstanding capabilities for the observation range – an object with a height of 1.8 m is detected at 1800 meters in complete darkness.

Dual battery system

The Merger Duo is powered with two rechargeable batteries: one built-in with a capacity of 4 Ah, the other replaceable with a capacity of 3.2 Ah. A single charge guarantees up to 7 hours of battery life. The embossment on the body of the replaceable battery for accurate determination of the correct position makes it possible to quickly and confidently replace a flat battery with a new one in complete darkness by touch.


Main
Sensor
640x480 pix. @ 17 µm (thermal) | CMOS 1920x1200 (digital)

Objective lens
F50/1.0 (thermal) | F50/1.4 (digital)

Magnification, x
3 – 24 (thermal) | 2 – 16 (digital)

Field of view (HxV), degrees / m@100m
12.4°/ 21.8 m (thermal) | 17.5°/ 30.7 m (digital)

IR Illuminator wavelength, nm
940 (invisible)

IR Optical power, mW
500

Detection range, m
1800 (thermal detection)

Sensor
Type
Uncooled, microbolometric (thermal) | Full-HD CMOS (digital)

Resolution, pixels
640x480 pix. @ 17 µm (thermal) | CMOS 1920x1200 (digital)

Pixel pitch, µm
17 (thermal)

NETD, mK
<25 (thermal)

Frame rate, Hz
50

Optics
Objective lens
F50/1.0 (thermal) | F50/1.4 (digital)

Magnification, x
3 – 24 (thermal) | 2 – 16 (digital)

Field of view (HxV), degrees / m @ 100 m
12.4° / 21.8 m (thermal channel) | 17.5°/30.7 m (digital channel)

Eye relief, mm
12

Display
Type
AMOLED HD

Resolution, pixels
1280х960

Infrared Illuminator
Emitter
LED

IR wavelength, nm
940

IR Optical power, mW
500

Beam divergence, degree
≥ FOV

IR spot position adjustment
yes

Range Performance
Detection range, m
1800 (thermal)

Video Recorder
Video / photo resolution, pixel
1280х960

Video / photo format
.mp4 / .jpg

Built-in memory, GB
64 GB

Wi-Fi
Wireless Protocol
Wi-Fi

Wireless Standard
IEEE 802.11 b/g/n/ac (WPA)

Frequency, GHz
2.4 / 5

Bluetooth
Wireless Protocol

Environmental Characteristics
Degree of protection, IP code (IEC60529)
IPХ7 (waterproof)

Operating temperature range, °С
-25 – +50

Power Supply
Output voltage, V
3.0 – 4.2

Battery type
Dual Li-Ion power system: APS 3 changeable battery (3.2 A·h) and built-in battery pack (4.0 A·h)

Capacity, mAh
3200 (external) + 4000 (internal)

Operating time on battery pack (at t=22°C), h *
7.5

External power supply, V
5V, 9V (USB Type-C Power Delivery)

Weight & Size
Body material
Magnesium alloy

Dimensions, mm
207x140x73

Weight, kg
1.2 (batteries included)
