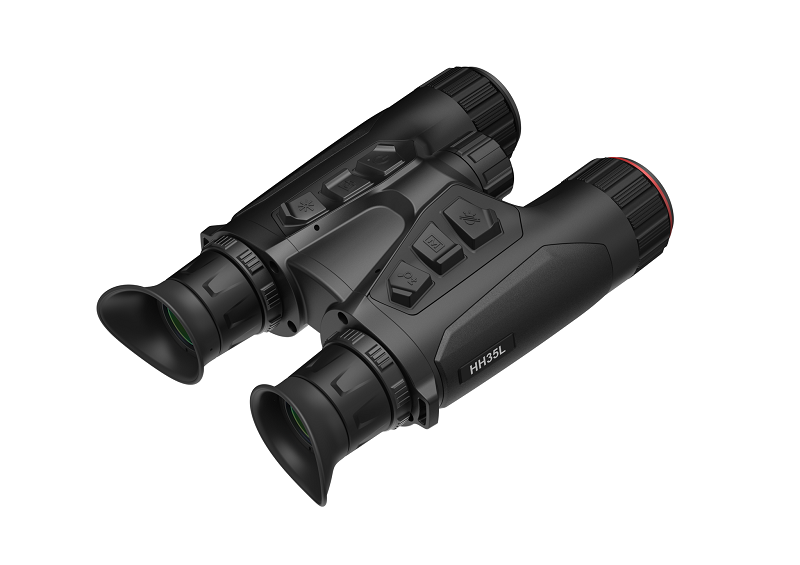

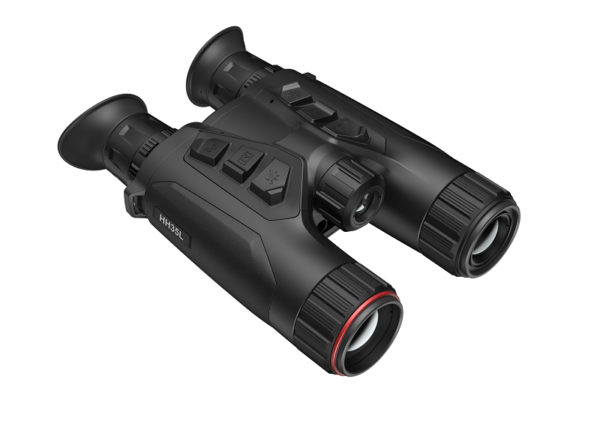

HIKMICRO Habrok HQ35L multi-spectrum binocular

HIKMICRO Habrok HQ35L multi-spectrum binocular. The HQ35L is equipped with a 640 × 512 @12 um thermal detector and a 2,560 × 1,440 optical detector. With less than 20 mK NETD, which represents high thermal sensitivity, it ensures perfect image quality and detail recognition even in the hardest weather conditions. Its 1,000 m Laser rangefinder can accurately measure the distance when you are stalking or observing under low-light conditions. It can be applied mainly in forest & field hunting, birding, animal searching, rescuing and marine scenario.

Technical Specifications

Thermal Module

• Image Sensor: VOx Uncooled Focal Plane Arrays
• Resolution: 640 × 512
• Frame Rate: 50 Hz
• Pixel Interval: 12 μm
• Response Waveband: 8 μm to 14 μm
• NETD: Less than 20 mK (@25°C), F# = 1.0
• Lens (Focal Length): 35 mm, F1.0
• Focus Mode: Focus Ring
• Detection Range: 1,800 m
• Focusing Distance: 3.5 m
• Magnification: 3.0x to 24.0x (8x)
• Field of View (H × V), Degrees/m @100 m: 12.5° × 10.1°/ 22.0 m × 17.6 m

Optical Module

• Image Sensor: 1.88” Progressive Scan CMOS
• Resolution: 2560 × 1440
• Focal Length: 31 mm, F1.2
• Working Distance: 3 m
• Illumination: 0.001 lux @ (F1.0, AGC On)
• Focus Mode: Focus Ring
• Magnification : 2.9x to 23.2x (X8)
• Field of View (H × V), Degrees/m @100 m: 13.9° × 7.8°/24.4 m × 13.6 m
• Smart IR: Yes
• Viewing Range at Night: 400 m

Image display

• Display: 0.49-inch, OLED, 1920 ×1080
• Palettes: Thermal: Black Hot, White Hot, Red Hot, Fusion; Optical: Day, Night, Auto
• FFC (Flat Field Correction) Mode: Auto, Manual, External Correction
• Exit Pupil: 8 mm
• Eye Relief: 15 mm
• Diopter (Range): -5 D to +3 D
• Brightness Adjustment: Yes
• Tone Adjustment: Cold, warm
• Contrast Adjustment: Yes
• Zoom Pro: Yes

System

• Record Video: Yes
• Capture Snapshot: Yes
• Audio Recording: Yes
• Standby Mode Yes
• Storage: Built-in EMMC (64 GB)
• PIP: Yes
• Hotspot: Yes
• Hot Track: Yes
• Digital Magnetic Compass: Yes
• GPS: Yes
• Local Album: Yes

Power Supply

• Battery Type: Replaceable and Rechargeable Li-ion Battery
• Battery Operating Time: ≥6 h (25°C, with hotspot off)
• Type-C Power Supply: 5 V DC, 2 A; Supports External Power Supply

General

• Protection Level: IP67
• Dimension: 138.2 mm × 68.4 mm × 212.4 mm
• Weight: 780 g without batteries
• Working Temperature: -30℃ to +55℃
• Interpupillary Adjustment Range: 60 mm to 70 mm
• Mounting Adapter: 1/4“-20-UNC

Laser Rangefinder

• Safety Class for Laser: Class 1
• Wavelength: 905 nm
• Measuring Range: 1,000 m
• Measurement Accuracy: ±1 m
• Measuring Range: 10 m

Infrared Illuminator

• Emitter: LED
• IR Wavelength: 850 nm
• Beam Angle: Adjustable 7.6 to 11.5°
