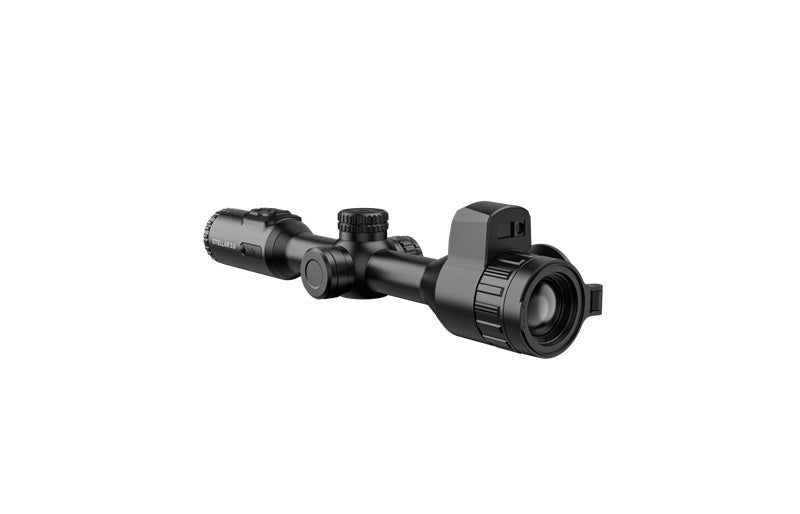

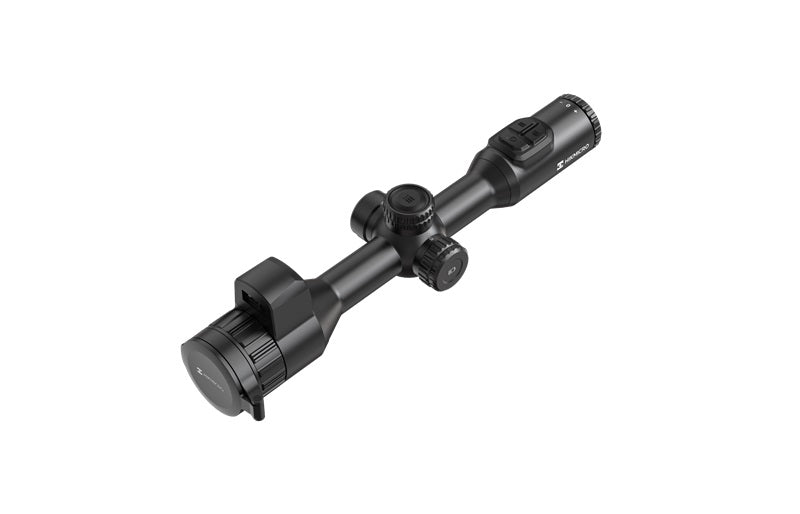

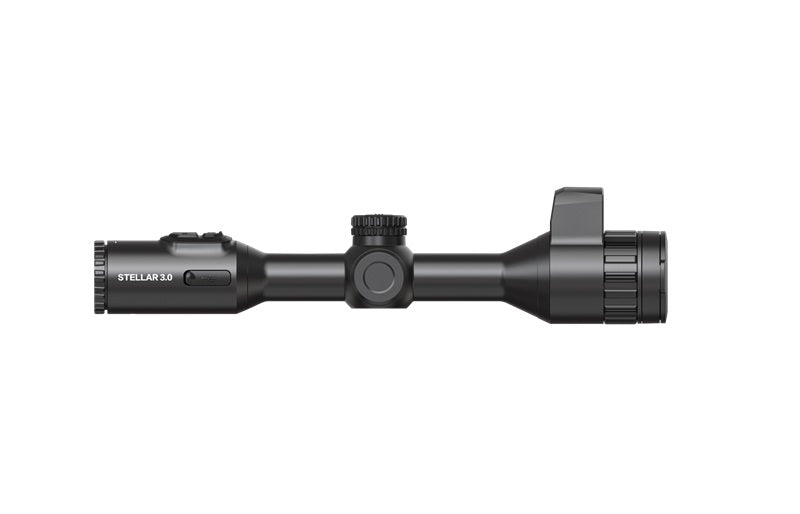

HIKMICRO Stellar SH50L 3.0 Thermal Image Scope

HIKMICRO STELLAR SH50L 3.0 Thermal Scope is equipped with a 384 × 288 @12 μm thermal detector, with much
higher sensitivity (NETD<15 mK) and the latest image processing algorithm (Image Pro 2.0) and shutterless system
(HSIS), ensuring users catch the finest details no matter the weather or light conditions without interruption. With a
2560 × 2560 1.03" OLED larger display, SH50L 3.0 makes it easier to spot targets quickly and accurately. The built
in 1000 m LRF and ballistic calculation contribute to more accurate shooting. The scope is mainly used for field
hunting.
Key Feature
● 384 × 288 resolution @12 μm thermal detector
● High sensitivity thermal module NETD<15 mK (@25°C, F# = 1.0)
● 50 mm, F1.0 lens with detection range up to 2600 m
● 2560 × 2560 resolution 1.03-inch OLED display
● HIKMICRO Shutterless Image System (HSIS)
● Built-in laser rangefinder up to 1000 m, with ballistic calculation
● Rechargeable internal batteries and external battery, 9h continuous operation
● High shock resistance up to 1000 g/0.4 ms
Specification
Thermal Module 384 × 288
Image Sensor VOx Uncooled Focal Plane Arrays
Max. Resolution 50 Hz



Frame Rate NETD
Pixel Interval 12 μm
Response Waveband 8 μm to 14 μm



Less than 15 mK (@25°C, F# = 1.0)
Lens (Focal Length) 50 mm, F1.0
Focus Mode Focus Ring


Detection Range 2600 m
Min. Focusing Distance 5 m
Magnification 6.0× to 24.0×



Support 1× step value of continuous zooming
Field of View(H × V), Degrees
/ m @100m
5.3° × 4.0°/9.3 m x 7.0 m
Image Display
Display
Palettes
2560 × 2560, 1.03-inch OLED
Black Hot, White Hot, Red Hot, Fusion, Red Monochrome, Green Monochrome
Exit Pupil
Eye Relief
6 mm
45 mm
Diopter (Range)
Brightness Adjustment -4D to 4D
Yes
Tone Adjustment
Contrast Adjustment
Cold, Warm
Yes
Zoom Pro
Image Pro 2.0
Yes
Yes
HSIS (HIKMICRO Shutterless
Image System)
Yes
System
Record Video
Capture Snapshot
On-board Video Recording
Yes
Audio Recording Yes
Recoil-activation Recording Yes


Standby Mode Yes
Storage Built-in EMMC (64 GB)


PIP Yes
Hotspot Yes


Hot Track Yes
Distance Measurement Yes


Zeroing Profiles 5
Freeze Zeroing Yes
Max. Recoil 1000 g/0.4 ms
Local Album Yes


Ballistic Calculation Yes

Power Supply
Battery Type
Two rechargeable Lithium batteries (internal), one replaceable and
rechargeable 18650 battery (external)
Battery Operating Time 9 hours continuous running (@25°C, Zoom Pro, LRF on)
Type-C Power Supply DC 5 V/2 A, USB Type-C interface
General


Supports QC3.0
* Only the built-in battery will be charged via the type-C cable. Use the battery
charger to charge the external battery.
Mounting Standard 30 mm
Protection Level IP67


Dimension 418.5 mm × 84 mm × 92.4 mm
Weight 870 g without external battery


Working Temperature Laser Rangefinder -30°C to 55°C (-22°F to 131°F)
Center Height 34 mm


Safety Class for Laser Class 1
Wavelength 905 nm


Max. Measuring Range 1000 m
Measurement Accuracy ±1 m


Min. Measuring Range 10 m
