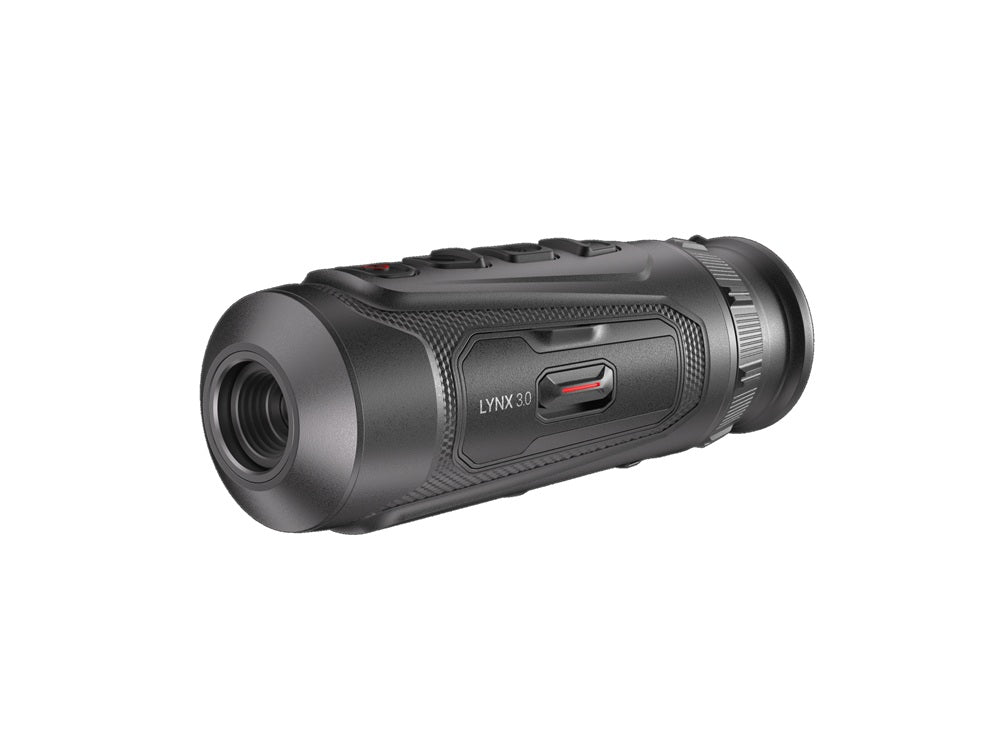

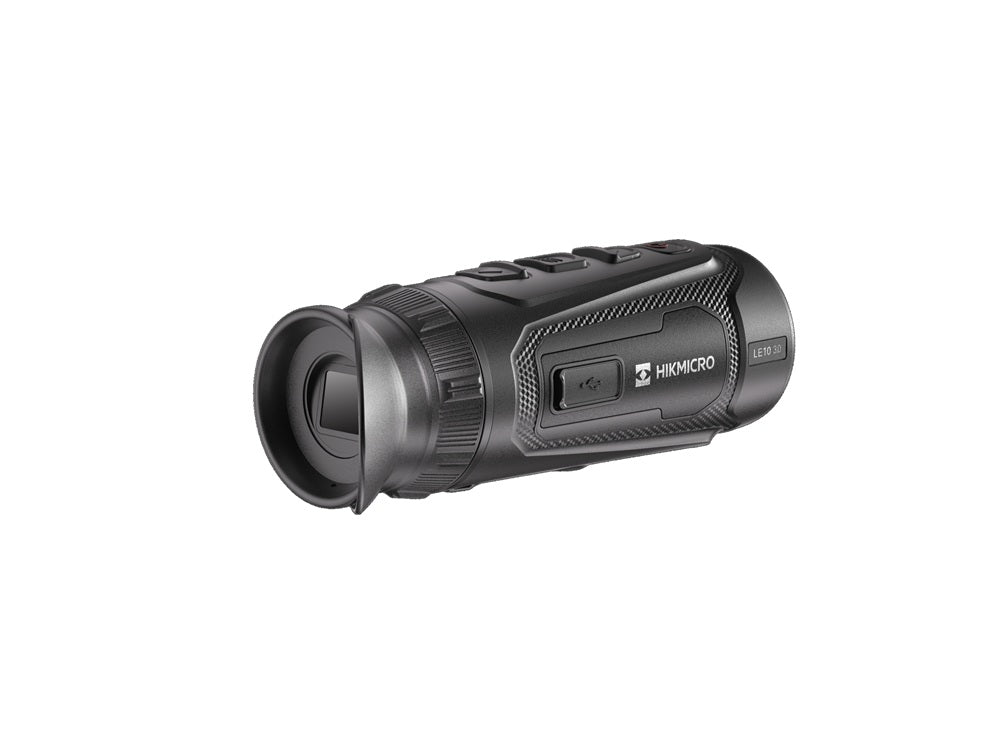

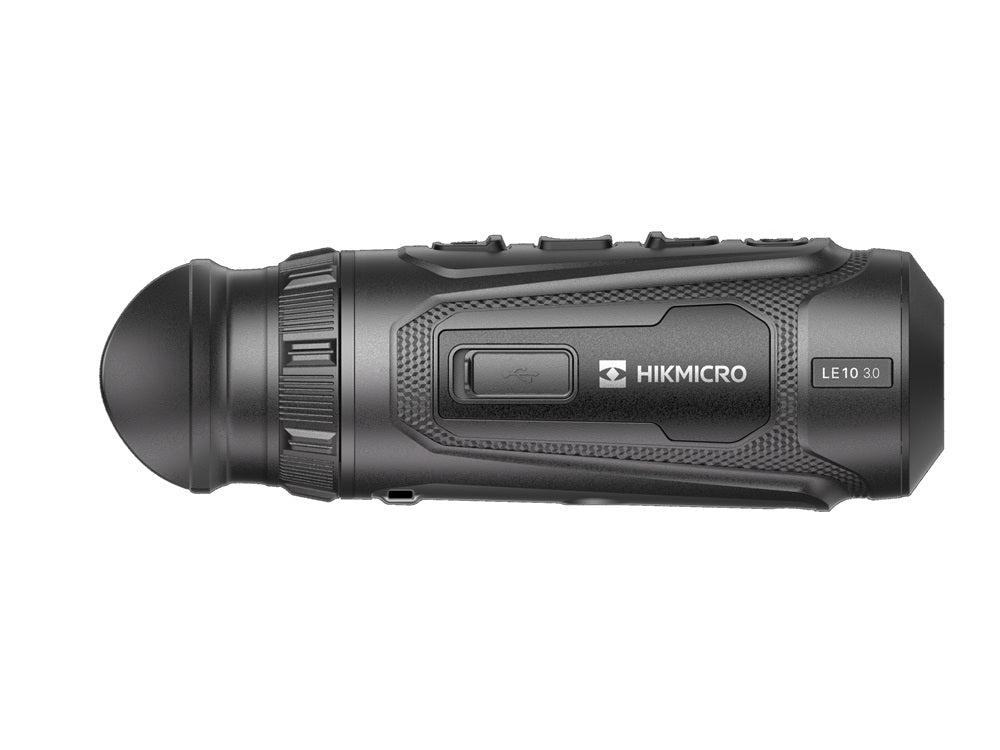

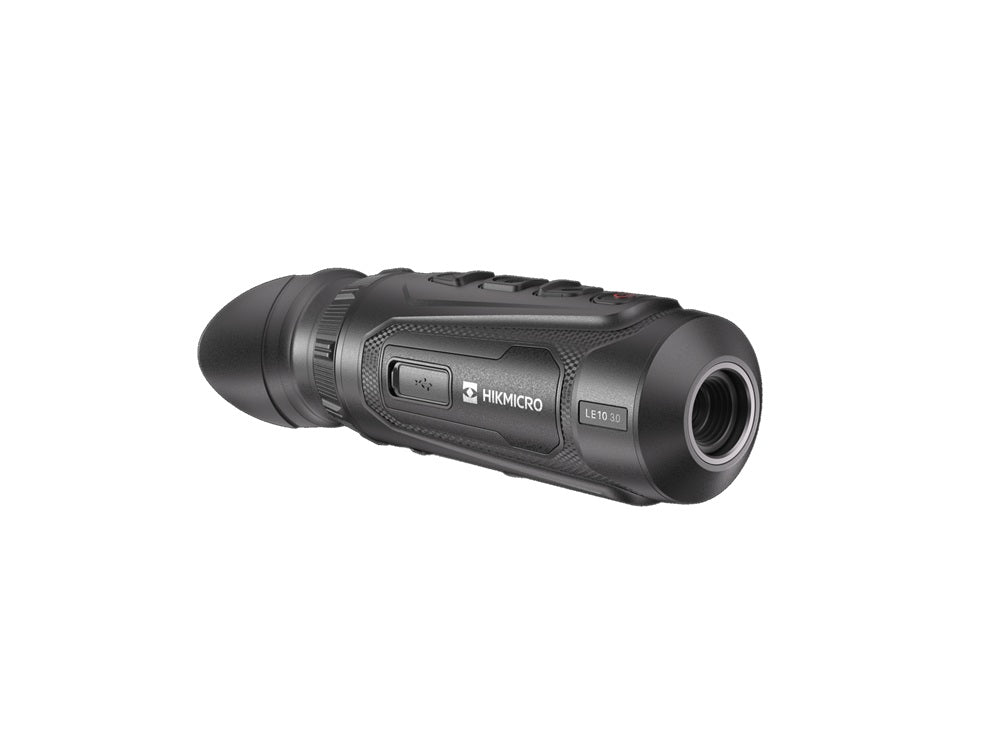

HIKMICRO Lynx LE10 3.0

HIKMICRO Lynx LE10 3.0 Handheld Thermal Monocular. The LE10 3.0 is the ultimate-valued thermal monocular for close-range observation. Featuring a 256 × 192 thermal detector and a 9.7 mm F1.0 lens, it offers a 1.4× base magnification and an 18° field of view, with a detection range of up to 500 m. Compact, reliable, and lightweight, it is an excellent choice for quick and efficient use in tight spaces.

Key Features

• High-sensitivity thermal module with NETD<20 mK (@25°C, F# = 1.0).
• 7 mm, F1.0 lens with thermal detection range up to 500 m
• AI-powered Image Pro 3.0 algorithm
• HIKMICRO Shutterless Imaging System (HSIS)
• 39-inch OLED display with 1024×768 resolution
• Replaceable and rechargeable 18650 battery provides up to 5.5 hours of continuous operation
• Lightweight design at 291.5 g, with a pocket-sized build

Specification
Thermal Module
Image Sensor        VOx Uncooled Focal Plane Arrays
Max. Resolution   256× 192
Frame Rate           50 Hz
Pixel Interval         12 μm
8 μm to 14 μm      Response Waveband
NETD                     Less than 20 mK (@25°C),F#=1.0
Lens (Focal Length) 9.7 mm, f1.0
Focus Mode            Focus Free
Detection Range     500 m
Min. Focusing Distance 3.4 m
Magnification 1.4× - 11.2× (8× )
Field of View(H × V), Degrees
/ m @100m       18.0°×13.6°/31.7 m×23.8 m
Image Display
Display               1024×768, 0.39-inch, AMOLED
Palettes              Black Hot, White Hot, Red Hot, Fusion, Red Monochrome, Green Monochrome
Exit Pupil            6 mm
Eye Relief            20mm
Diopter (Range) -5D to +3D
Brightness Adjustment Yes
Tone Adjustment   Cold, Warm
Contrast Adjustment Yes
Zoom Pro             N/A
HSIS (HIKMICRO Shutterless Image System) Yes
Image Pro 3.0 Yes
Sync Pro Yes
System
Record Video Yes
Capture Snapshot Yes
Audio Recording Yes
Standby Mode Yes
Built-in Memory   Built-in EMMC (64 GB)
PIP                       Yes
Hotspot                2.4 GHz/5 GHz Wi-Fi Waveband
Hot Track              Yes
Distance Measurement  Yes
Local Album          Yes
Power Supply
Battery Type      Replaceable and Rechargeable Li-ion 18650 Battery
6-hour continuous running with hotspot on (@25°C)
Battery Operating Time
5.5-hour continuous running with hotspot on (@-20°C)
Type-C Power Supply
General
DC 5V/2A
Supports External Power Supply, Support Direct Charging
Protection Level
Dimension
IP67
152.4× 53.6× 49.5 mm
Weight
291.5 g with battery
From -30°C to 45°C (-22°F to 113°F);
Working Temperature
Humidity: 90%
