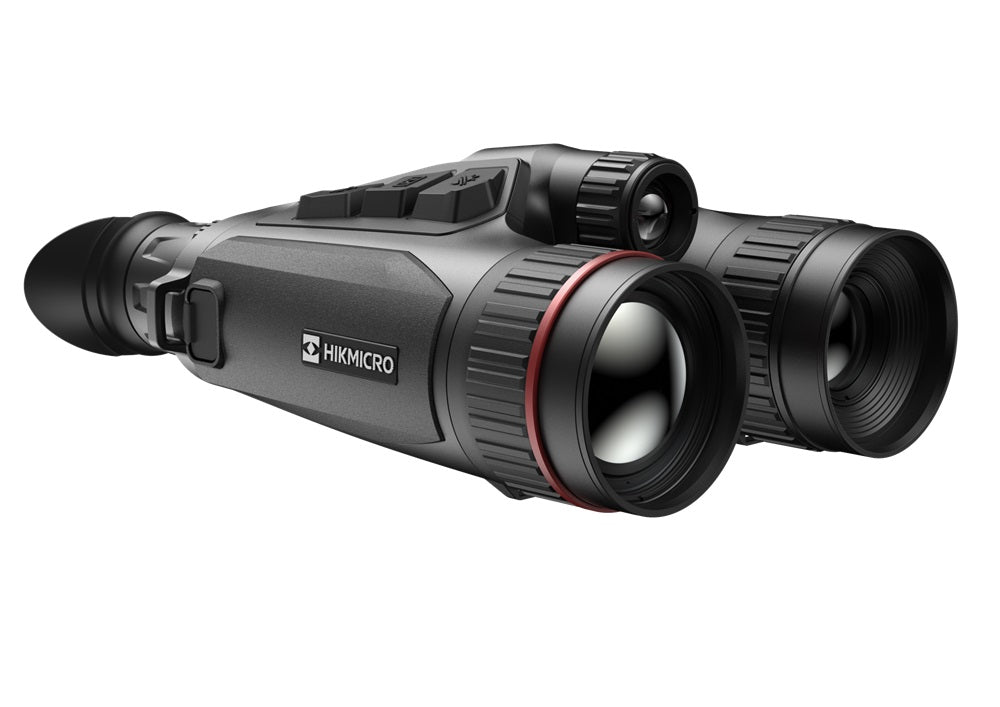

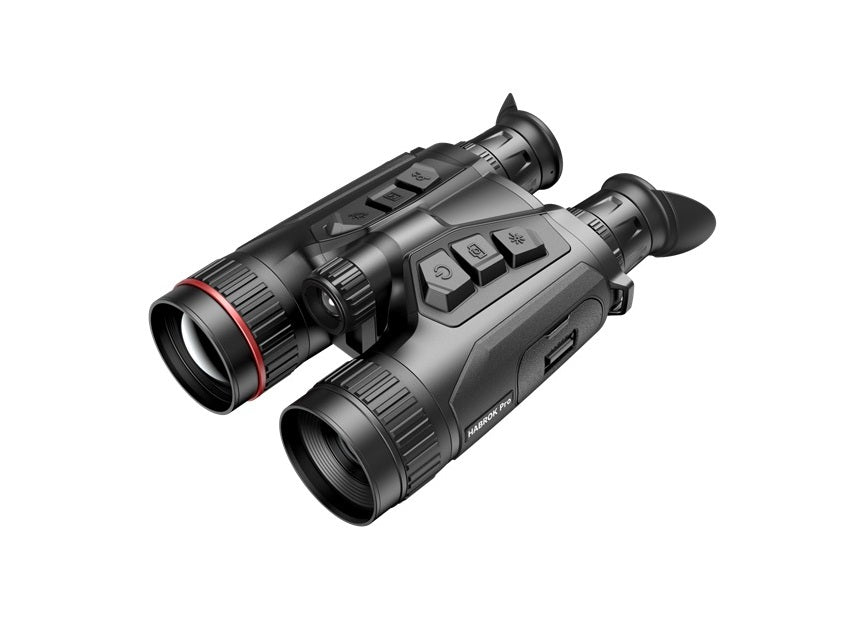

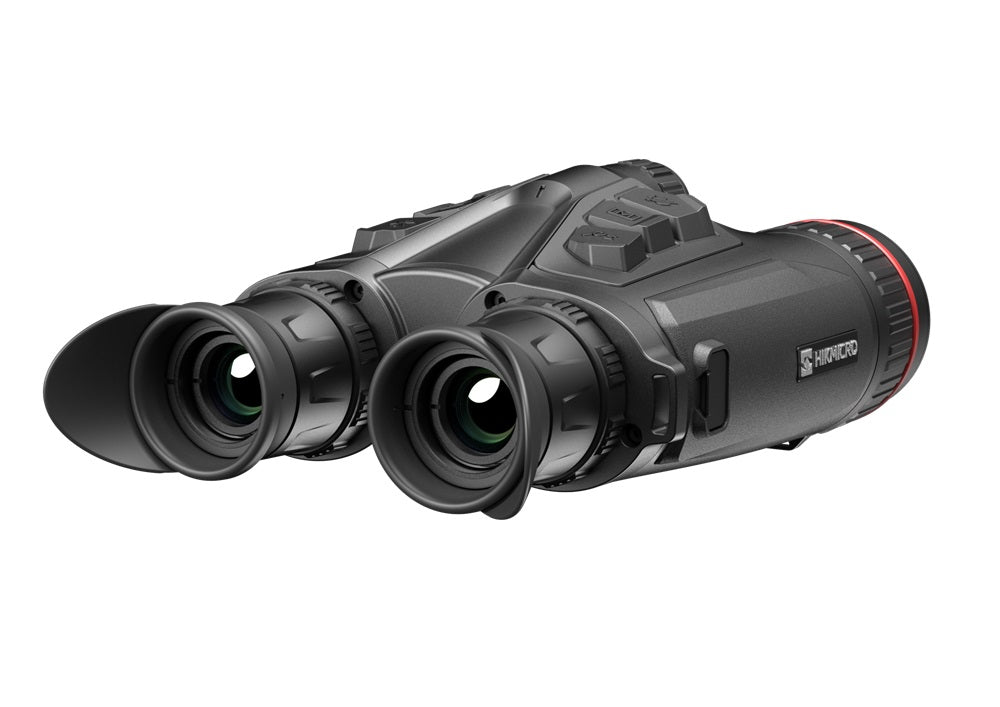

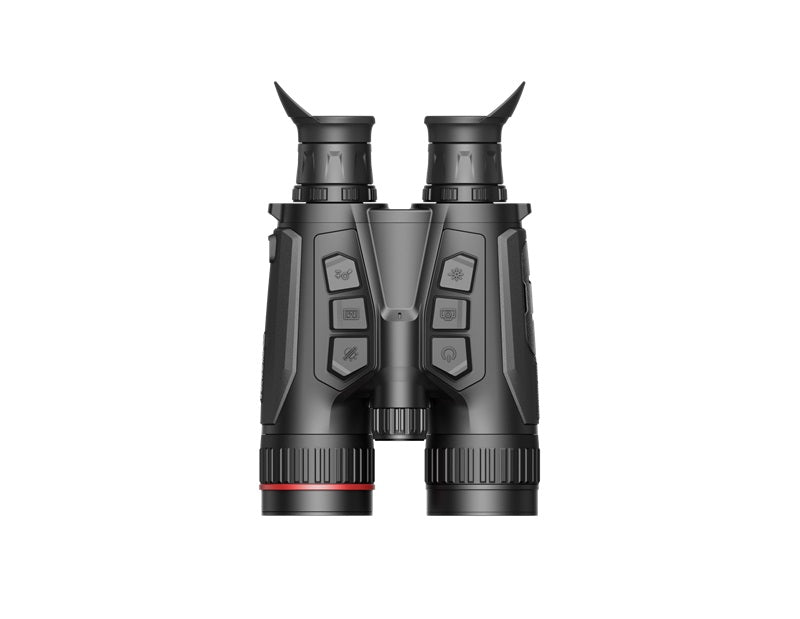

HIKMICRO Habrok Pro HQ50L Multi-Spectrum Binocular

HIKMICRO Habrok Pro HQ50L Multi-Spectrum Binocular. The HQ50L is equipped with a 15 mK NETD, 640 × 512 thermal detector @ 50 mm thermal lens and an advanced 4K digital detector with 60 mm lens, ensuring perfect image quality and detail recognition in various weather and light conditions. Combined with a 1,000 m Laser rangefinder and replaceable IR emitter @ 850 nm wavelength, this all-in-one binocular can be applied mainly in forest & field hunting, birding, animal searching, rescuing and marine scenario.

Key Features

• 640 × 512 resolution @ 12 μm thermal detector
• High sensitivity thermal module NETD < 15 mK (@ 25°C, F# = 1.0)
• 50 mm, F1.0 lens with thermal detection range up to 2,600 m
• 3,840 × 2,160 4K ultra high-resolution CMOS detector
• 1,920 × 1,080 resolution 0.49-inch OLED display
• Built-in 850 nm IR illuminator and Laser Rangefinder of 1,000 m measuring distance
• 7 h+ continuous operation time with replaceable battery pack
• 975 g lightweight, with a compact and ergonomic design

Technical Specifications

Thermal Module

• Image Sensor: VOx Uncooled Focal Plane Arrays
• Resolution: 640 × 512
• Frame Rate: 50 Hz
• Pixel Interval: 12 μm
• Response Waveband: 8 μm to 14 μm
• NETD: Less than 15 mK (@25°C), F#=1.0
• Lens (Focal Length): 50 mm, F1.0
• Focus Mode: Focus Ring
• Detection Range: 2,600 m
• Focusing Distance: 5 m
• Magnification: 4.3x to 25.8x (6x)
• Field of View(H × V), Degrees/m @100 m: 8.8° × 5.3°/ 15.4 m × 9.3 m

Optical Module

• Image Sensor: 1.88” Progressive Scan CMOS
• Resolution: 3,840 × 2,160
• Focal Length: 60 mm, F2.2
• Working Distance: 3 m
• Focus Mode: Focus Ring
• Magnification: 5.5x to 22.0x（4x)
• Field of View (H × V), Degrees/m @100 m: 7.3°× 4.1° / 12.6 m × 7.2 m
• Smart IR: Yes
• IR Illuminator Wavelength: 850 nm
• Viewing Range at Night: 400 m
• Replaceable IR Illuminator: Yes

Image Display

• Display: 0.49 inch, OLED, 1920 ×1080
• Palettes: Thermal: Black Hot, White Hot, Red Hot, Fusion; Optical: Day, Night, Auto
• FFC (Flat Field Correction) Mode: Auto, Manual, External Correction
• Exit Pupil: 8 mm
• Eye Relief: 15 mm
• Diopter (Range): -5D to +3D
• Brightness Adjustment: Yes
• Tone Adjustment: Cold, warm
• Contrast Adjustment: Yes
• Zoom Pro: Yes
• Image Pro 2.0: Yes

System

• Record Video: Yes
• Capture Snapshot: Yes
• Audio Recording: Yes
• Standby Mode: Yes
• Storage: Built-in EMMC (64 GB)
• PIP: Yes
• Hotspot: Yes
• Hot Track: Yes
• Digital Magnetic Compass: Yes
• GPS: Yes
• Local Album: Yes

Power Supply

• Battery Type: Replaceable and Rechargeable Li-ion Battery Pack
• Battery Operating Time: ≥7 h (-20°C, with hotspot off, LRF and Zoom Pro on)
• Type-C Power Supply: 5V DC, 2A; Supports External Power Supply

General

• Protection Level: IP67
• Dimension: 142.9 mm × 79.7 mm × 230.5 mm
• Weight: 975 g with battery pack
• Working Temperature:: -30℃ to +55℃
• Interpupillary Adjustment Range: 60 mm to 74 mm
• Mounting Adapter: 1/4“-20-UNC

Laser Rangefinder

• Safety Class for Laser: Class 1
• Wavelength: 905 nm
• Measuring Range: 1,000 m
• Measurement Accuracy: ±1 m
• Measuring Range: 10 m
