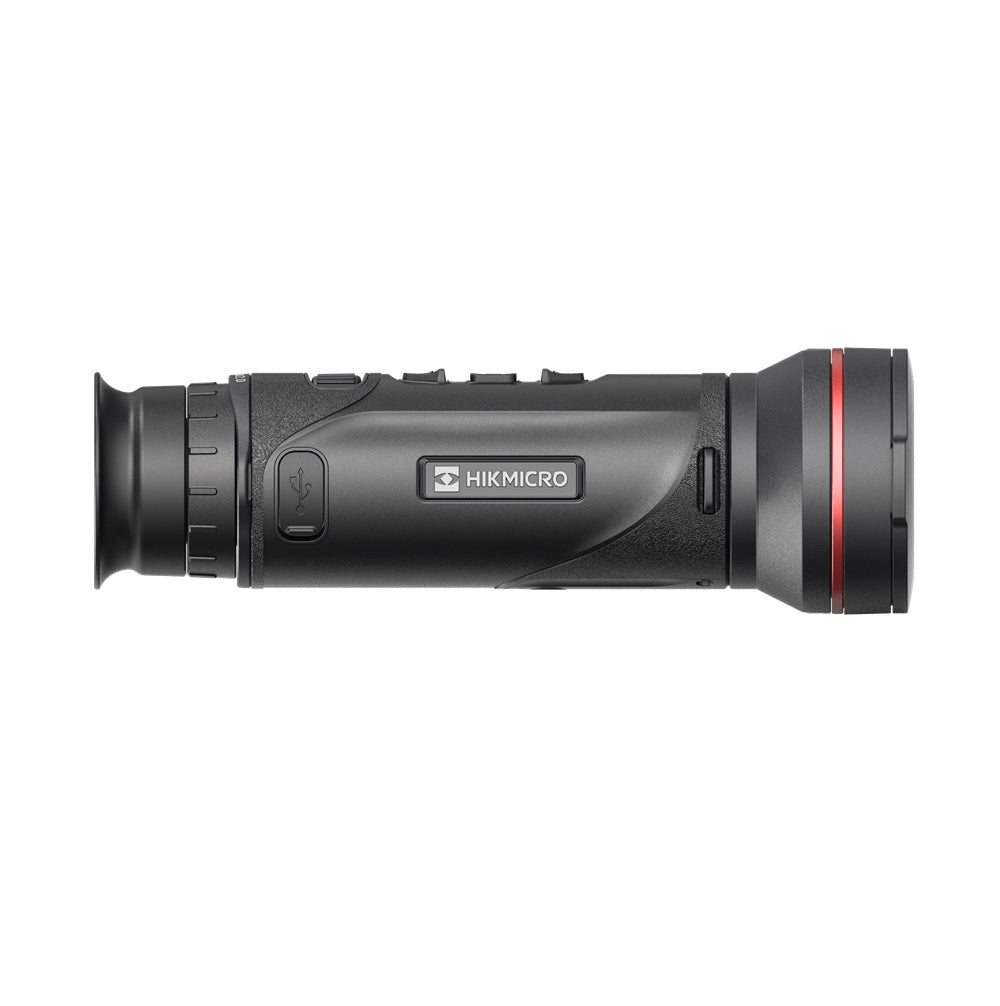

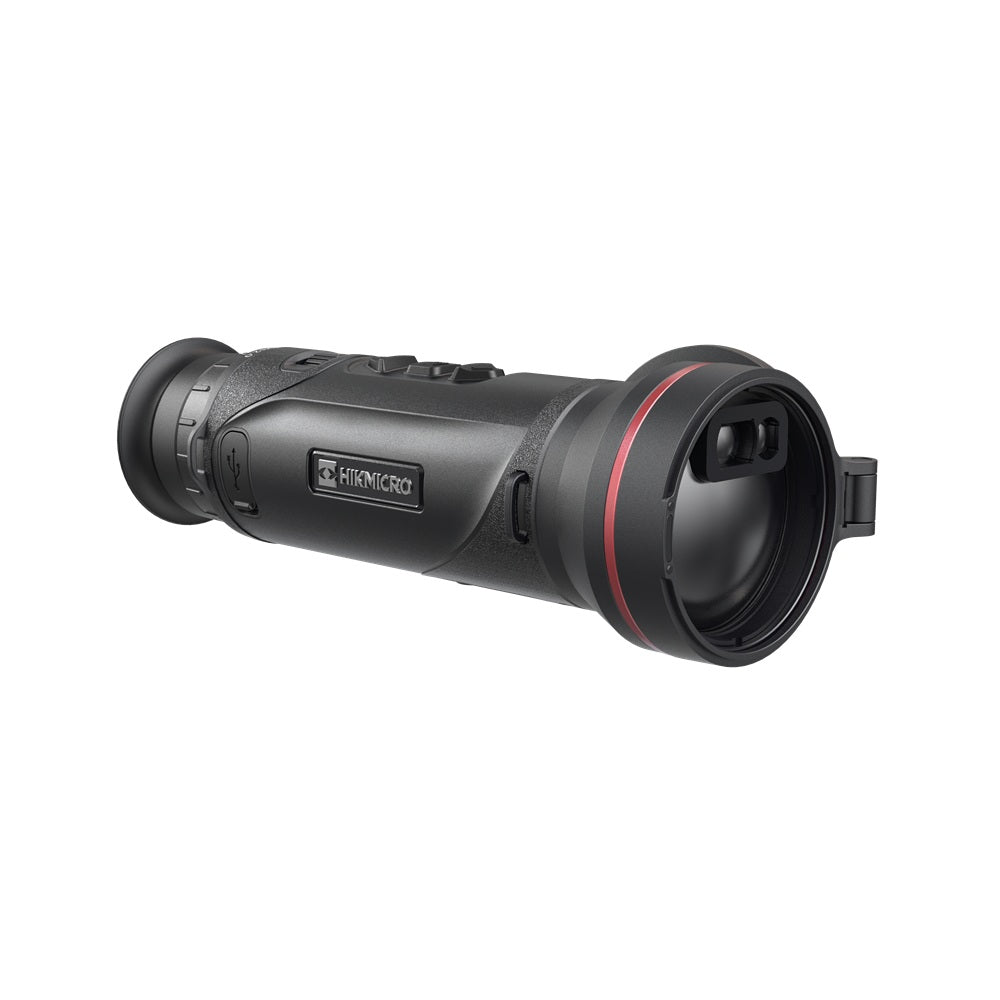

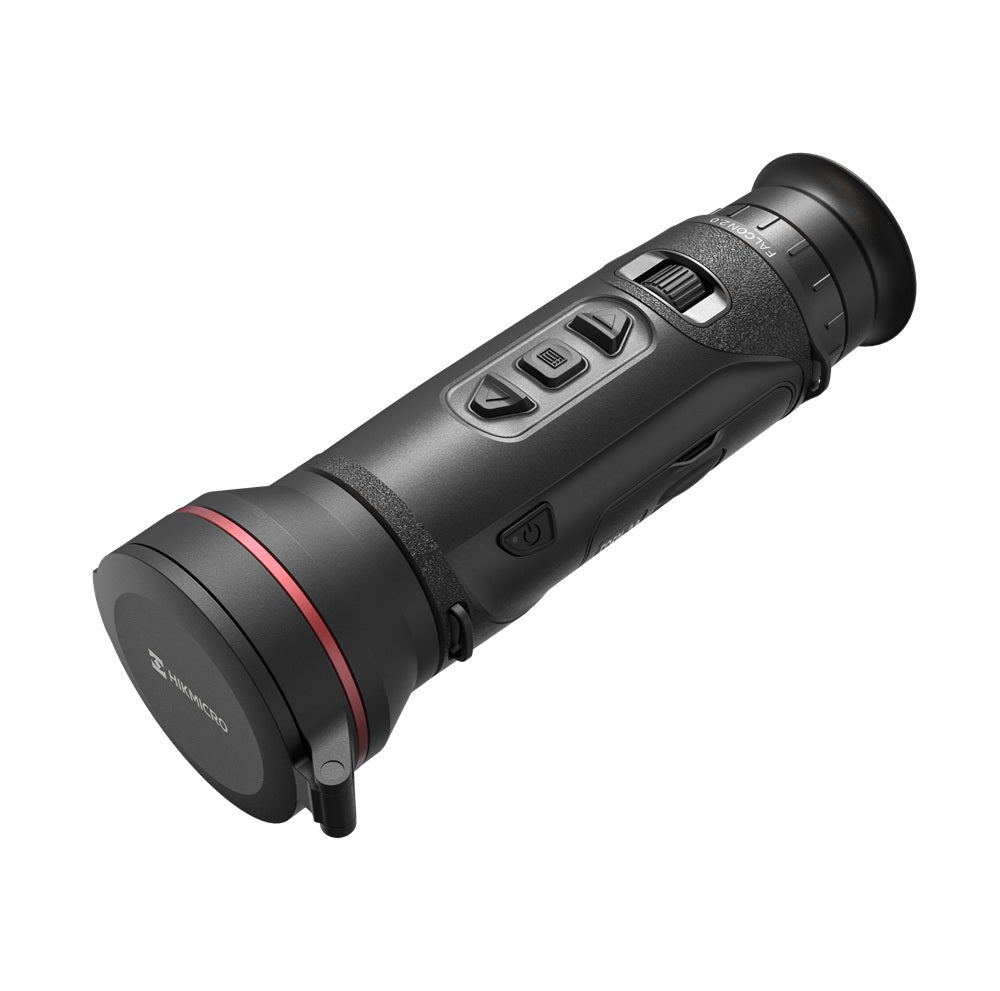

HIKMICRO Falcon FQ50L 2.0

HIKMICRO Falcon FQ50L 2.0 Handheld Thermal Monocular. The FQ50L 2.0 is equipped with a 640 × 512 @12 μm thermal detector with much higher sensitivity (NETD < 15 mK), ensuring the finest details caught no matter the weather or light conditions. A 0.49” 1,920 × 1,080 larger OLED display and the innovative shutterless system (HSIS) provide an immersive and smooth viewing experience. The laser rangefinder ensures precise distance measurement within the range of 1,000 m. Maintaining the traditional premium cylindrical shape design, the monocular can be applied mainly in forest & field hunting, birding, animal searching, rescuing and marine scenarios.

Key Features

• High sensitivity thermal module NETD < 15mK (@25° C, F#=1.0)
• 640 × 512 resolution with 12 μm detector
• 50 mm, F0.9 lens with detection range up to 2600 m
• 1,920 × 1,080 resolution 0.49-inch OLED display
• HIKMICRO Shutterless Image System (HSIS)
• 6 h+ continuous operation time with replaceable and rechargeable battery
• 583 g lightweight, with a compact and traditional cylindrical shape design
• Built-in lens laser rangefinder up to 1,000 m

Technical Specifications

Thermal Module

• Image Sensor: VOx Uncooled Focal Plane Arrays
• Resolution: 640 × 512
• Frame Rate: 50 Hz
• Pixel Interval: 12 μm
• Response Waveband: 8 μm to 14 μm
• NETD: Less than 15 mK (@25°C), F#=1.0
• Lens (Focal Length): 50 mm, F0.9
• Focus Mode: Rear Focus Wheel
• Focusing Distance: 5.0 m
• Magnification: 2.7 × to 21.6 × (8 ×)
• Field of View(H × V), Degrees / m @100 m: 8.8° × 7.0°/15.4 m × 12.2 m @100 m
• Detection Range: 2,600 m

Image Display

• Display: 1,920 × 1,080, 0.49”, OLED
• Contrast Adjustment: Yes
• Brightness Adjustment: Yes
• Palettes: Black Hot, White Hot, Red Hot, Fusion, Red Monochrome, Green Monochrome
• Exit Pupil: 8 mm
• Eye Relief: 15 mm
• Diopter (Range): -5 D to +3 D
• Tone Adjustment: Cold, Warm
• Zoom Pro: Yes
• HSIS (HIKMICRO Shutterless Image System): Yes
• Image Pro 2.0: Yes

System

• Storage: Built-in Memory Module (64 GB)
• Record Video: Yes
• Capture Snapshot: Yes
• Local Album: Yes
• Standby Mode : Yes
• PIP: Yes
• Hotspot: 2.4/5 G Wi-Fi Waveband
• Hot Track: Yes
• Distance Measurement: Yes
• Audio Recording: Yes

Power Supply

• Battery Type: Replaceable and rechargeable 21700 battery
• Battery Operating Time: ≥6 h (@25°C, WiFi, Zoom Pro, LRF on)
• Type-C Power Supply : 5 V DC, 2 A
• Supports External Power Supply, Support Direct Charging

General

• Work Temperature/Humidity: From -30°C to 55°C; Humidity: 90% or Less
• Protection Level: IP67
• Dimension: 213.4 mm × 69.6 mm × 82.9 mm
• Weight: 583 g with Battery

Laser Rangefinder

• Safety Class for Laser: Class 1
• Wavelength: 905 nm
• Measuring Range: 1,000 m
• Measurement Accuracy: ±1 m
• Min. Measuring Range: 10 m
