HIKMICRO Condor CQ50L 2.0

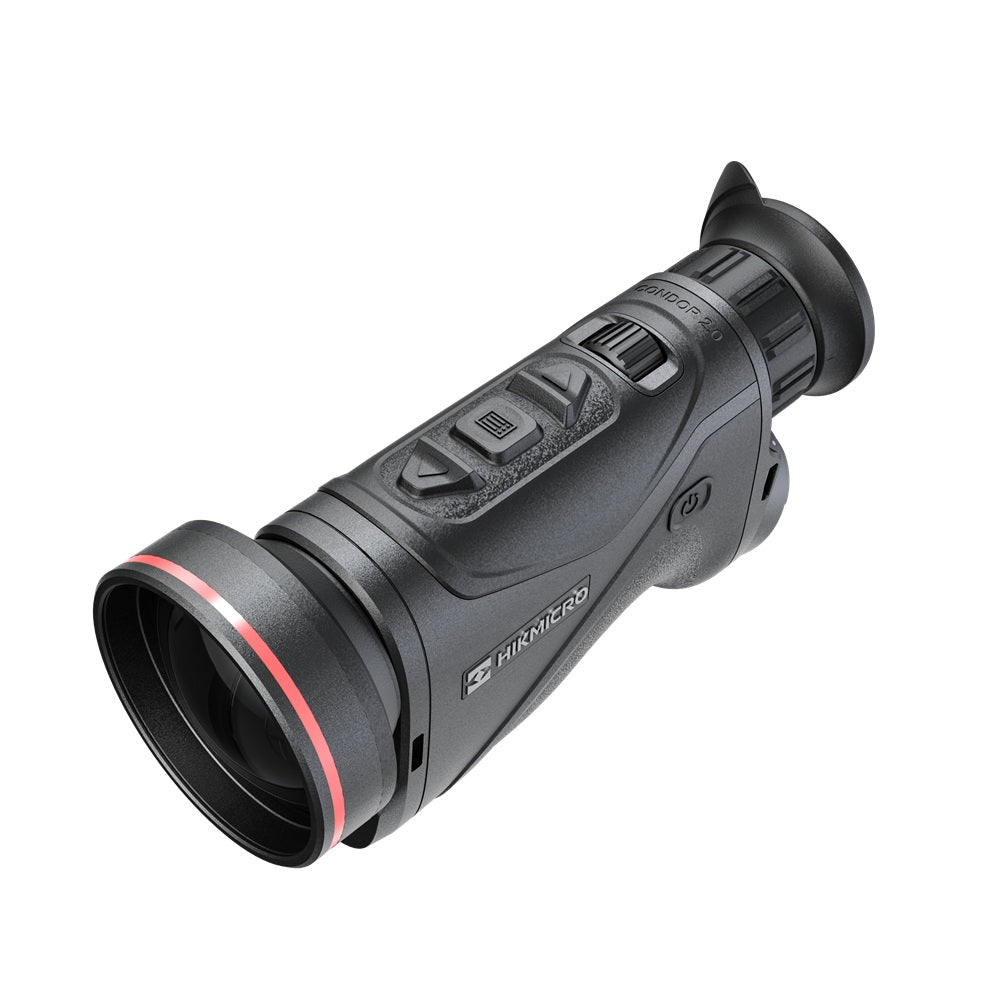

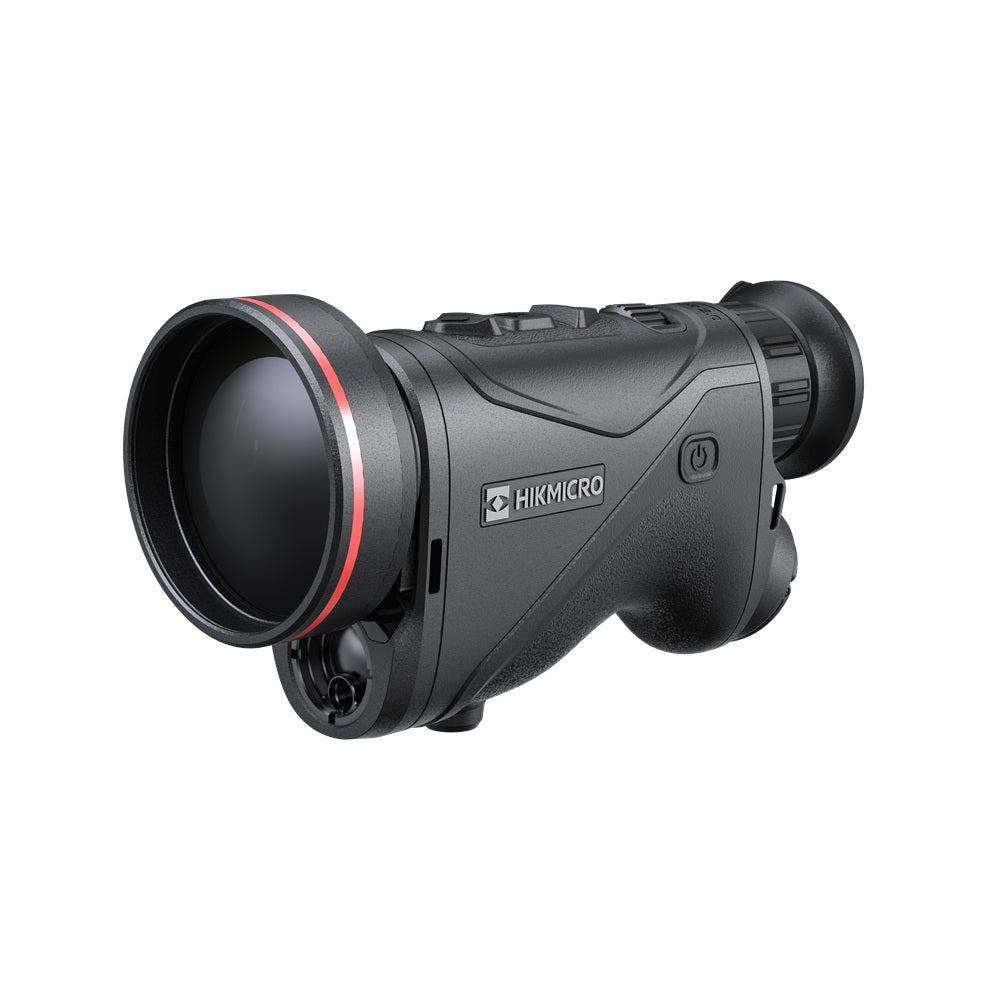

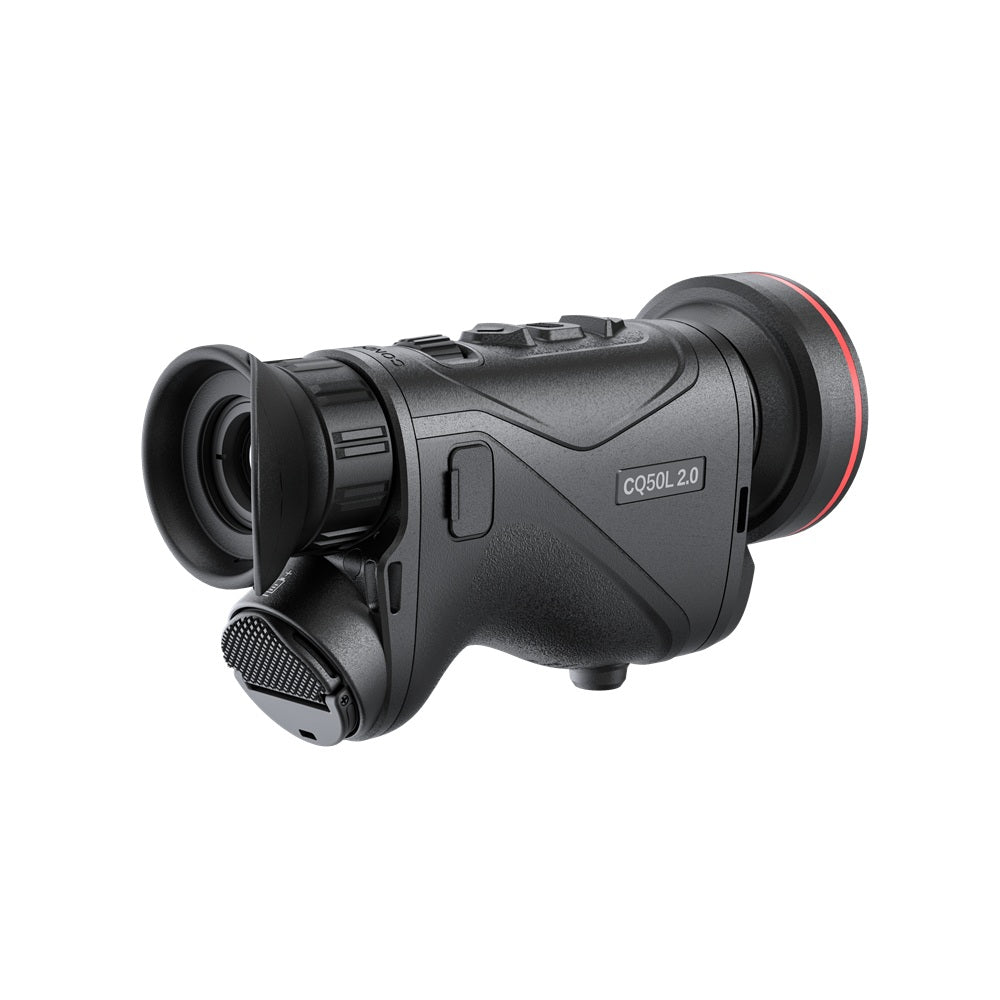

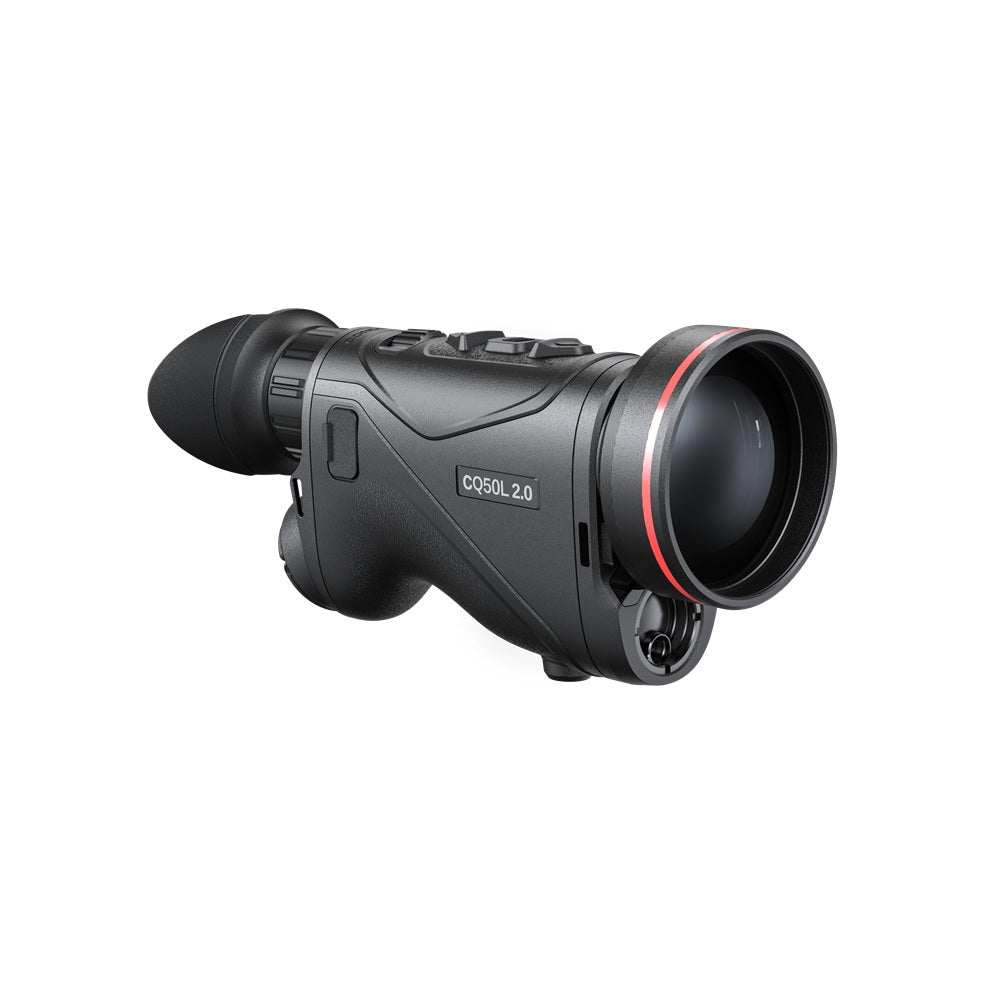

HIKMICRO Condor LRF CQ50L 2.0 Handheld Thermal Monocular. The CQ50L 2.0 is equipped with a 640 × 512 @12 μm thermal detector with much higher sensitivity (NETD < 15 mK), ensuring the finest details catching no matter the weather or light conditions. A 0.49” 1920 × 1080 larger OLED display and the innovative shutterless system (HSIS) provide an immersive and smooth viewing experience. The laser rangefinder ensures precise distance measurement within the range of 1000 m. Maintaining the traditional premium cylindrical shape design, the monocular can be applied mainly in forest & field hunting, birding, animal searching, rescuing and marine scenarios.

Key Features

• High sensitivity thermal module NETD < 15 mK (@25°C, F#=1.0)
• 640 × 512 resolution with 12 μm detector
• 1,920 × 1,080 resolution 0.49-inch OLED display
• 50 mm, F0.9 lens with detection range up to 2,600 m
• HIKMICRO Shutterless Image System (HSIS)
• 5 h+ continuous operation time with replaceable and rechargeable 21700 battery
• 537 g lightweight, ergonomic compact shape
• Integrated laser rangefinder up to 1,000 m

Technical Specifications

Thermal Module

• Image Sensor: VOx Uncooled Focal Plane Arrays
• Resolution: 640 × 512
• Frame Rate: 50 Hz
• Pixel Interval: 12 μm
• Response Waveband: 8 μm to 14 μm
• NETD: Less than 15 mK (@25°C), F#=1.0
• Lens (Focal Length): 50 mm, F0.9
• Focus Mode: Rear Focus Wheel
• Detection Range: 2,600 m
• Focusing Distance: 5.0 m
• Magnification: 2.7 × – 21.6 × (8 ×)
• Field of View(H × V), Degrees / m @100 m: 8.7° × 7.0°/15.2 m × 12.2 m @100 m

Image Display

• Display: 1,920 × 1,080, 0.49 inch, OLED
• Palettes: Black Hot, White Hot, Red Hot, Fusion, Red Monochrome, Green Monochrome
• Exit Pupil: 8 mm
• Eye Relief: 15 mm
• Diopter (Range): -5 D to +3 D
• Brightness Adjustment: Yes
• Tone Adjustment: Cold, warm
• Contrast Adjustment: Yes
• Image Pro 2.0: Yes
• Zoom Pro: Yes
• HSIS (HIKMICRO Shutterless Image System): Yes

System

• Record Video: Yes
• Capture Snapshot: Yes
• Audio Recording: Yes
• Standby Mode : Yes
• Storage: Built-in Module (64 GB)
• PIP: Yes
• Hotspot: 2.4/5 G Wi-Fi Waveband
• Hot Track: Yes
• Distance Measurement: Yes
• Local Album: Yes

Power Supply

• Battery Type: Replaceable and rechargeable 21700 battery
• Battery Operating Time: ≥6.5 h (@25°C, Wi-Fi, Zoom Pro, LRF on)
• Type-C Power Supply : 5 V DC, 2 A
• Supports External Power Supply, Support Direct Charging

General

• Protection Level: IP67
• Dimension: 193 mm × 71.5 mm × 93.3 mm
• Work Temperature: From -30°C to 55°C; Humidity: 90% or Less
• Weight: 537 g with Battery

Laser Rangefinder

• Safety Class for Laser: Class 1
• Wavelength: 905 nm
• Measuring Range: 1,000 m
• Measurement Accuracy: ±1 m
• Measuring Range: 10 m
