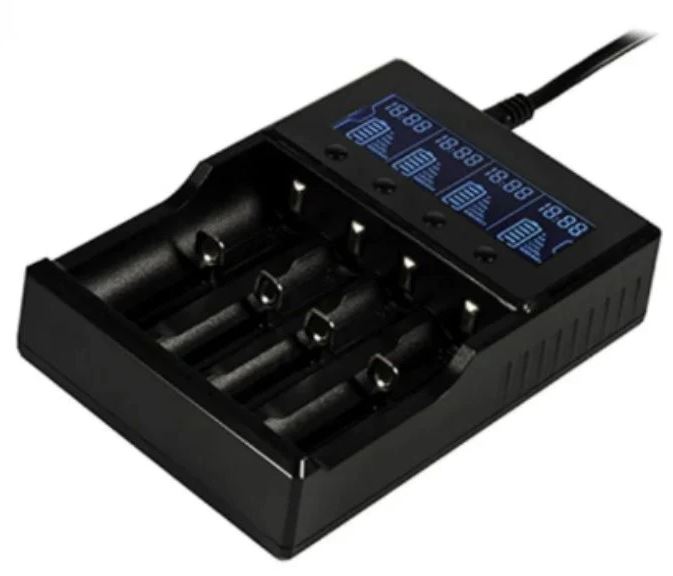

Acebeam Ace-4 Charger

Acebeam Ace-4 Charger. Charge up to a 21700 cell.

Specifications:

Input: 100-240V(AC), 50/60Hz, 600mA(Max)

          12V-24V(DC) 2000mA(Max)

Output: 4.2V/3.65V/1.5V 500mA x 4/1000mA x 4

Size: 145 x 104 x 39.5(Length x Width x Height)

Weight: 260g

Operating Temperature: 5%(0℃)-90%(40℃)

(full load in normal working conditions)

Product ratings

Compliant Standards:  TUV GS FCC CE C-TICK CB ROHS

How to charge battery cells

1. Plug the power cable into a standard AC outlet or plug the car adapter into the cigarette lighter in your vehicle. The Acebeam charger will automatically check the battery type and condition.

2. If the charger stands empty for 30 seconds without inserting batteries or pressing the switch button, it will start the energy saving function and the  brightness of LCD screen decreased.

3. Reverse insertion of a battery or the wrong operation, will cause the LCD screen to display "Err" (Error). The A4 multi charger will automatically identify between Li-ion/ni-MH/Ni-CD battery type. A LiFePO4 battery could be selected manually. Default current is 500mA, 1000mA is available if needed.

4. Button A/B/C/D corresponding to the separate charging slot.

Short press 1S:  Select between charging current 500mA or 1000mA.

Long press 5S:  Select the charging mode between Li-ion and LiFePO4 battery types.

5. For safety, the A4 multi charger will automatically stop charging when it reaches 12 hours. Remove all batteries and unplug the power when battery charging is completed.
